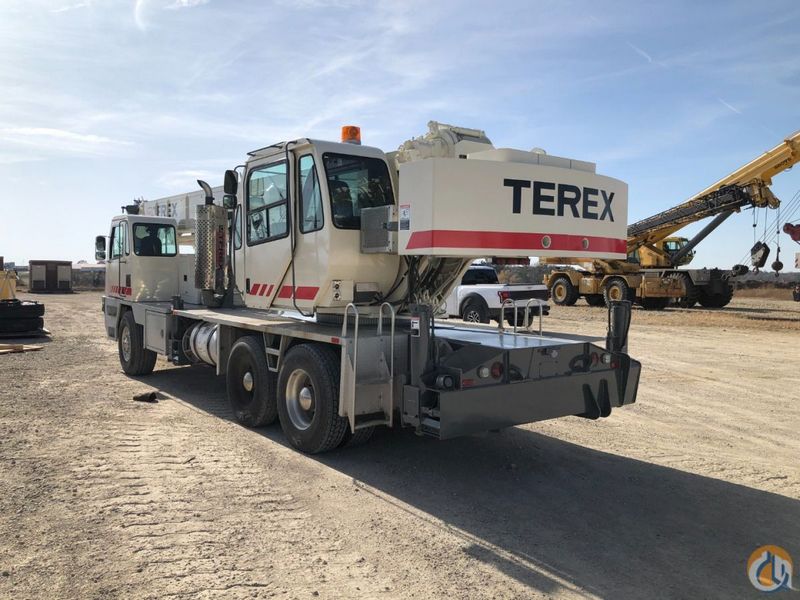

Terex T340XL
Browse All Terex or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 33.75 ft in (10.29 m) |
| Max Height @ Max Raise Angle - No Jib | 105 ft in (32.01 m) |
| Max Elevating Angle | 77 degrees |
| Number Of Sections | 4 |
| Swing Speed | 2.8 rpm |
Dimensions
| Transport Width | 8.01 ft in (2440 mm) |
| Transport Height | 10.73 ft in (3270 mm) |
| Width W/ Outriggers Extended | 22.02 ft in (6710 mm) |
| Carrier Length | 32.42 ft in (9880 mm) |
| Upper Structure Tail Swing Radius | 8.99 ft in (2740 mm) |
Upper Structure Engine
| Make | Terex |
Carrier Engine
| Make | Terex |
| Model | ISC-300 |
| Gross Power | 300 hp (223.8 kw) |
| Net Power | 242 hp (180.5 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 860 lb ft (1166.1 Nm) |
| Torque Measured @ | 1300 rpm |
| Displacement | 504.7 cu in (8.3 L) |
Operational
| Operating Weight | 60053 lb (27239.6 kg) |
| Carrier Fuel Capacity | 60 gal (227 L) |
| Upper Structure Hydraulic System Fluid Capacity | 91 gal (344.5 L) |
| Tire Size | Front - 425/65R22.5-20 P.R, Rear - 11R22.5-16 P.R |
Transmission
| Transmission Type | Fuller RT 80908LL |
| Number Of Forward Gears | 10 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 37.3 mph (60 km/h) |
