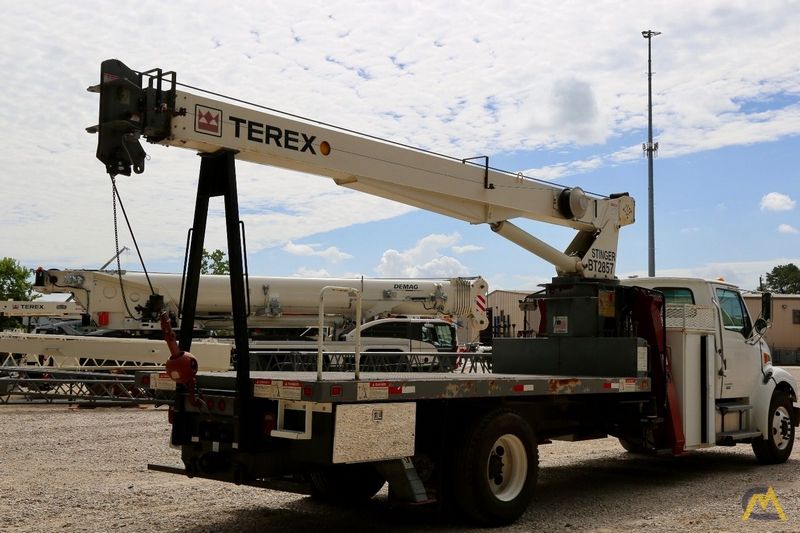

Terex 2857
Browse All Terex or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 23 ft in (7.01 m) |
| Max Height @ Max Raise Angle - No Jib | 56.99 ft in (17.37 m) |
| Min Working Radius | 5 ft in (1.53 m) |
| Max Working Radius | 55 ft in (16.77 m) |
| Max Elevating Angle | 80 degrees |
| Max Lift Capacity | 28000 lb (12700.59 kg) |
| Number Of Sections | 3 |
Dimensions
| Transport Length | 34.55 ft in (10530 mm) |
| Transport Width | 8.14 ft in (2480 mm) |
| Transport Height | 11.75 ft in (3580 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Width W/ Outriggers Extended | 17.72 ft in (5400 mm) |
Carrier Engine
| Make | Terex |
| Model | Powerstoke V8 |
| Gross Power | 200 hp (149.2 kw) |
| Power Measured @ | 2600 rpm |
| Max Torque | 520 lb ft (705.1 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 366.2 cu in (6 L) |
Operational
| Number Of Axels | 2 |
| Carrier Fuel Capacity | 45 gal (170 L) |
| Carrier Hydraulic System Fluid Capacity | 70.1 gal (265 L) |
| Tire Size | 10R 22.5F Goodyear G159, Rear 10R 22.5F Goodyear G124 |
Transmission
| Transmission Type | Manual |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 74 mph (119.1 km/h) |
