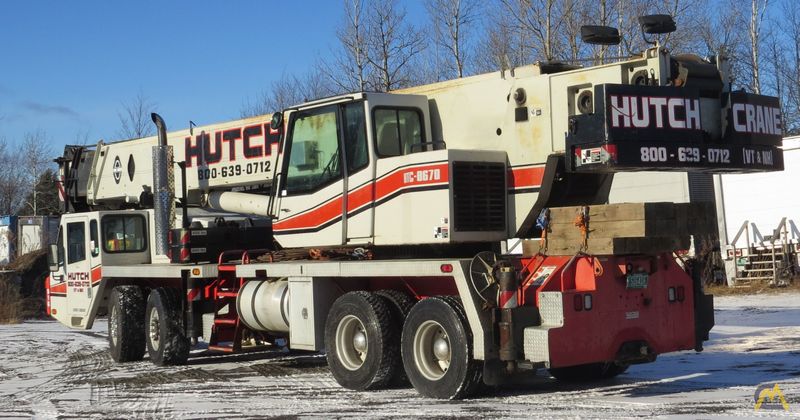

Link-Belt HTC8670
Browse All Link-Belt or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 38 ft in (11.58 m) |
| Max Height @ Max Raise Angle - No Jib | 115 ft in (35.05 m) |
| Max Elevating Angle | 78 degrees |
| Number Of Sections | 4 |
| Swing Speed | 1.7 rpm |
Dimensions
| Transport Length | 45.58 ft in (13890 mm) |
| Transport Width | 8.5 ft in (2590 mm) |
| Transport Height | 11.55 ft in (3520 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Width W/ Outriggers Extended | 25.99 ft in (7920 mm) |
| Carrier Length | 36.78 ft in (11210 mm) |
| Upper Structure Tail Swing Radius | 13.69 ft in (4170 mm) |
Carrier Engine
| Stroke | 5.2 in (130 mm) |
| Bore | 6.3 in (160 mm) |
| Make | Link-Belt |
| Model | Series 60 |
| Gross Power | 365 hp (272.2 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1350 lb ft (1830.4 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 775.1 cu in (12.7 L) |
| Number Of Cylinders | 6 |
Operational
| Operating Weight | 139993.6 lb (63500 kg) |
| Carrier Hydraulic System Fluid Capacity | 169 gal (639.8 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 130 amps |
| Tire Size | Front - 425/64R22.5, Rear - 11R22.5 |
Transmission
| Transmission Type | Eaton RTO–14709MLL |
| Number Of Forward Gears | 11 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 58.2 mph (93.7 km/h) |
| Max Speed - Reverse | 10.3 mph (16.5 km/h) |
