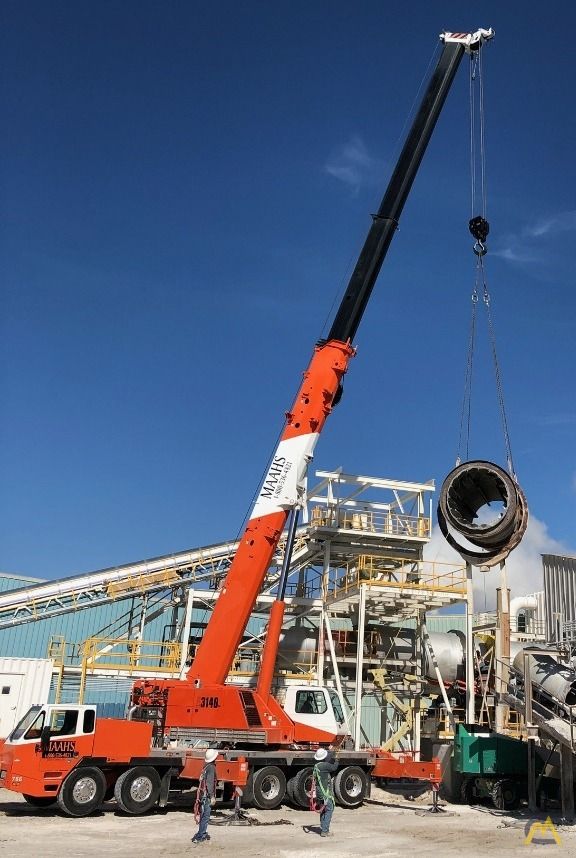

Link-Belt HTC-3140 LB
Browse All Link-Belt or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 113 ft in (34.45 m) |
| Max Height @ Max Raise Angle - No Jib | 204 ft in (62.18 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 6 |
Dimensions
| Transport Length | 49.05 ft in (14950 mm) |
| Transport Width | 9.32 ft in (2840 mm) |
| Transport Height | 12.14 ft in (3700 mm) |
| Wheelbase | 28.1 ft in (8564.88 mm) |
| Ground Clearance | 0.99 ft in (300 mm) |
| Width W/ Outriggers Extended | 27.01 ft in (8230 mm) |
| Carrier Length | 40 ft in (12190 mm) |
Upper Structure Engine
| Make | Link-Belt |
| Model | QSB - 6.7 |
| Gross Power | 250 hp (186.5 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 730 lb ft (989.8 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 409 cu in (6.8 L) |
Carrier Engine
| Make | Link-Belt |
| Model | ISX 15 |
| Gross Power | 581 hp (433.3 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1850 lb ft (2508.3 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 912 cu in (15 L) |
Operational
| Def Tank Capacity | 10 gal (37.9 L) |
| Operating Weight | 109904.9 lb (49852 kg) |
| Fuel Capacity | 95 gal (359.7 L) |
| Hydraulic System Fluid Capacity | 35 gal (132.5 L) |
| Hydraulic Pump Flow Capacity | 41 gal/min (155.3 L/min) |
| Tire Size | Front - 445/65R22.5 , Rear - 12R24.5 |
Transmission
| Number Of Forward Gears | 11 |
| Number Of Reverse Gears | 3 |
