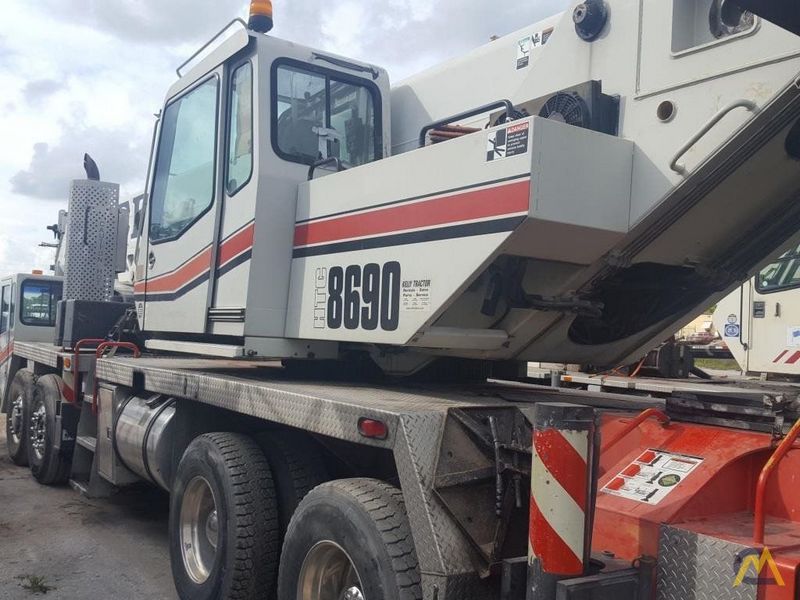

Link-Belt HTC8690
Browse All Link-Belt or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 47 ft in (14.33 m) |
| Max Height @ Max Raise Angle - No Jib | 147.97 ft in (45.1 m) |
| Min Working Radius | 9 ft in (2.75 m) |
| Max Working Radius | 130 ft in (39.63 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 164400 lb (74570.59 kg) |
| Swing Speed | 1.7 rpm |
Dimensions
| Transport Length | 45.58 ft in (13890 mm) |
| Transport Width | 8.54 ft in (2600 mm) |
| Transport Height | 11.55 ft in (3520 mm) |
| Wheelbase | 23.1 ft in (7040.88 mm) |
| Ground Clearance | 0.89 ft in (270 mm) |
| Width W/ Outriggers Extended | 25.99 ft in (7920 mm) |
| Carrier Length | 37.57 ft in (11450 mm) |
| Upper Structure Tail Swing Radius | 13.78 ft in (4200 mm) |
Upper Structure Engine
| Make | Link-Belt |
| Model | QSX15 |
| Gross Power | 480 hp (358 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1550.4 lb ft (2102 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 915 cu in (15 L) |
Carrier Engine
| Make | Link-Belt |
| Model | C13 |
| Gross Power | 445 hp (331.9 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1550 lb ft (2101.6 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 762.8 cu in (12.5 L) |
Operational
| Operating Weight | 79533 lb (36075.6 kg) |
| Fuel Capacity | 95 gal (359.6 L) |
| Number Of Axels | 4 |
| Carrier Fuel Capacity | 95 gal (359.7 L) |
| Carrier Hydraulic System Fluid Capacity | 144 gal (545.1 L) |
| Carrier Oil Capacity | 10.6 gal (40.1 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 135 amps |
| Tire Size | 445/65r22.5, rear 12R22.5 |
Transmission
| Transmission Type | manual transmission |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 62.4 mph (100.3 km/h) |
| Max Speed - Reverse | 5.6 mph (8.9 km/h) |
