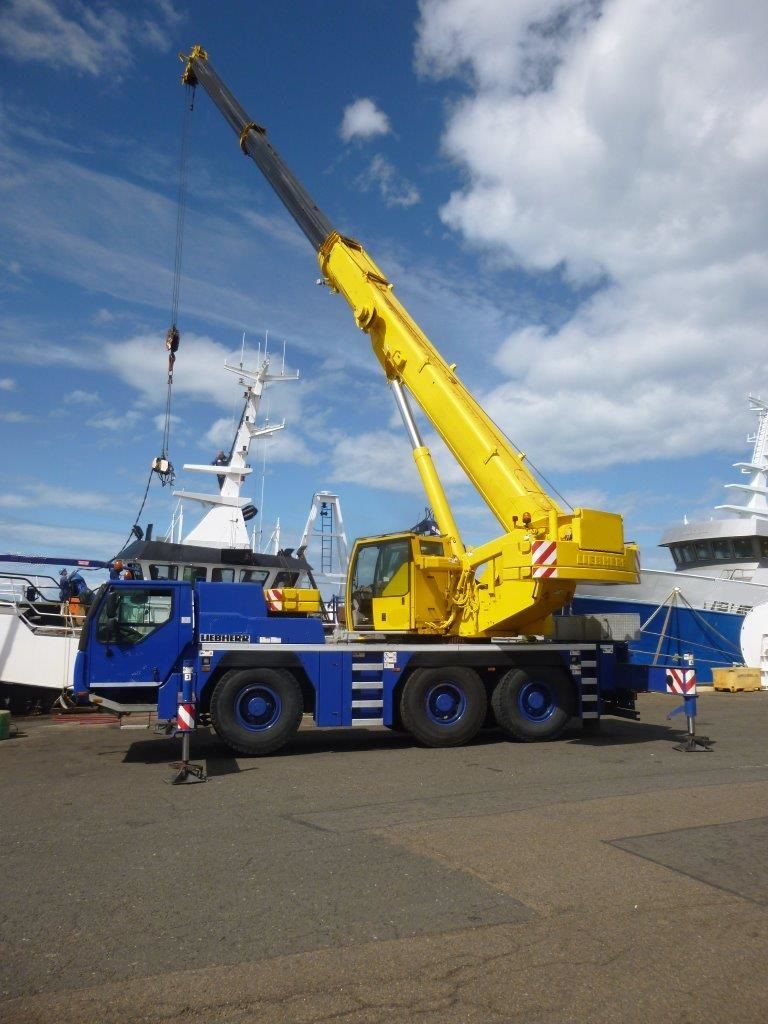

Liebherr LTM1055-3.2
Browse All Liebherr or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 33.47 ft in (10.2 m) |
| Max Height @ Max Raise Angle - No Jib | 131.24 ft in (40 m) |
| Min Working Radius | 8.21 ft in (2.5 m) |
| Max Working Radius | 118.12 ft in (36 m) |
| Max Elevating Angle | 83 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 12125.43 lb (5500 kg) |
| Swing Speed | 1.6 rpm |
Dimensions
| Transport Length | 37.28 ft in (11360 mm) |
| Transport Width | 8.8 ft in (2680 mm) |
| Transport Height | 12.14 ft in (3700 mm) |
| Carrier Length | 30.71 ft in (9358 mm) |
| Upper Structure Tail Swing Radius | 11.49 ft in (3500 mm) |
Carrier Engine
| Make | Liebherr |
| Model | D936L A6 |
| Net Power | 367 hp (273.7 kw) |
| Max Torque | 1700 lb ft (2304.9 Nm) |
Operational
| Carrier Fuel Capacity | 92.5 gal (350 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 170 amps |
| Tire Size | 14 R25 |
Transmission
| Transmission Type | ZF 12-speed gear box with automatic control system AS-TRONIC |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 49.8 mph (80 km/h) |
| Max Speed - Reverse | 5.3 mph (8.5 km/h) |
