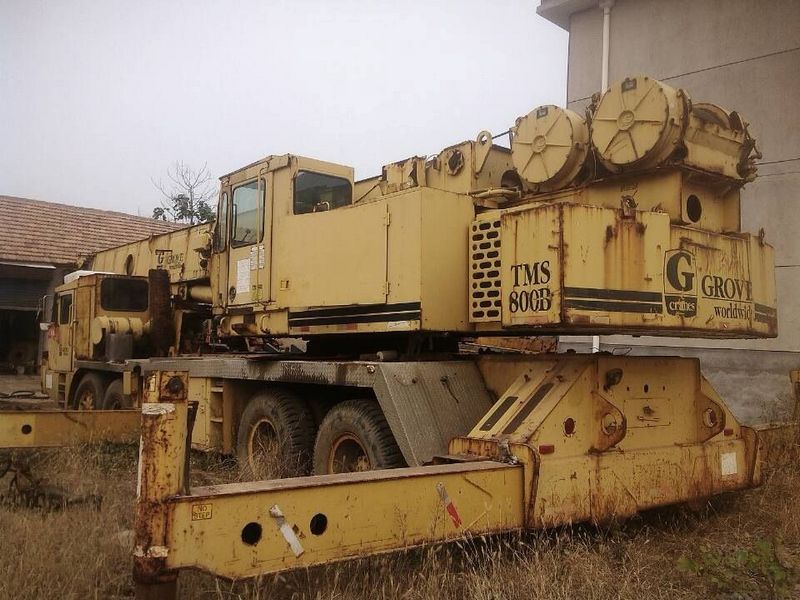

Grove TMS800B
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 46 ft in (14.03 m) |
| Max Height @ Max Raise Angle - No Jib | 133 ft in (40.54 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 110 ft in (33.53 m) |
| Max Elevating Angle | 81.5 degrees |
| Max Lift Capacity | 150000 lb (68038.86 kg) |
| Swing Speed | 1.4 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 47.67 ft in (14529 mm) |
| Transport Width | 10.98 ft in (3346 mm) |
| Transport Height | 11.5 ft in (3505 mm) |
| Ground Clearance | 0.58 ft in (175 mm) |
| Width W/ Outriggers Extended | 26.55 ft in (8090 mm) |
| Carrier Length | 37.01 ft in (11278 mm) |
| Upper Structure Tail Swing Radius | 12.98 ft in (3956 mm) |
Upper Structure Engine
| Make | Grove |
Carrier Engine
| Make | Grove |
| Model | NTA855C |
| Gross Power | 309.8 hp (231 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1005 lb ft (1362.6 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 854.4 cu in (14 L) |
| Number Of Cylinders | 6 |
Operational
| Operating Weight | 101090 lb (45853.7 kg) |
| Number Of Axels | 4 |
| Carrier Fuel Capacity | 100 gal (378.6 L) |
| Upper Structure Hydraulic System Fluid Capacity | 197 gal (745.8 L) |
| Operating Voltage | 24 V |
| Tire Size | front 445/65R22.5-20PR rear 12.00R20-18PR |
Transmission
| Transmission Type | Roadranger gearbox |
| Number Of Forward Gears | 9 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 49.8 mph (80 km/h) |
Weights
| Counterweight | 12919.1 lb (5860 kg) |
Hydraulic
| Pump Flow Capacity | 188 gal/min (711.7 L/min) |
