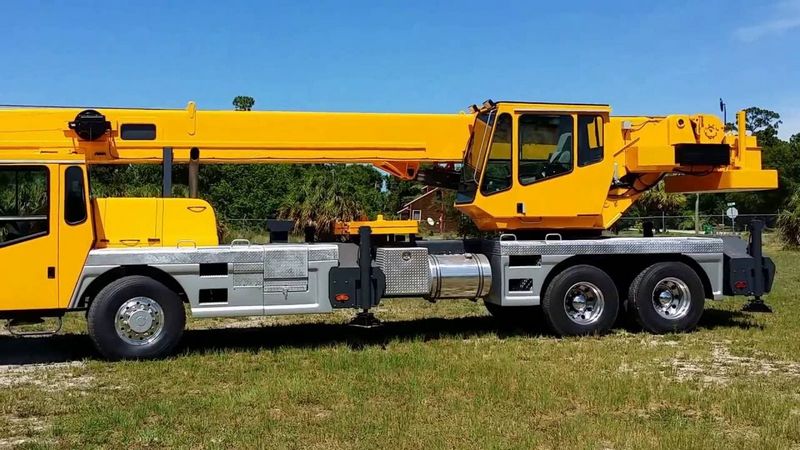

Grove TMS540 6x4
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 44 ft in (13.42 m) |
| Max Height @ Max Raise Angle - No Jib | 98 ft in (29.88 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 80 ft in (24.39 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 3 |
| Max Lift Capacity | 80000 lb (36287.4 kg) |
| Swing Speed | 3 rpm |
Dimensions
| Transport Length | 43.34 ft in (13208 mm) |
| Transport Width | 7.67 ft in (2337 mm) |
| Transport Height | 10.84 ft in (3302 mm) |
| Ground Clearance | 0.8 ft in (241 mm) |
| Width W/ Outriggers Extended | 20 ft in (6096 mm) |
| Upper Structure Tail Swing Radius | 11.1 ft in (3383 mm) |
Carrier Engine
| Make | Grove |
| Model | 3126B HUEI |
| Gross Power | 300 hp (223.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 800.3 lb ft (1085 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 438.8 cu in (7.2 L) |
Operational
| Operating Weight | 54000 lb (24494 kg) |
| Number Of Axels | 4 |
| Carrier Fuel Capacity | 60 gal (227 L) |
| Upper Structure Hydraulic System Fluid Capacity | 111 gal (420 L) |
| Operating Voltage | 24 V |
| Tire Size | Front - 425/65R22.5 / Rear - 11R22.5 |
Transmission
| Transmission Type | Allison Automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 65 mph (104.7 km/h) |
