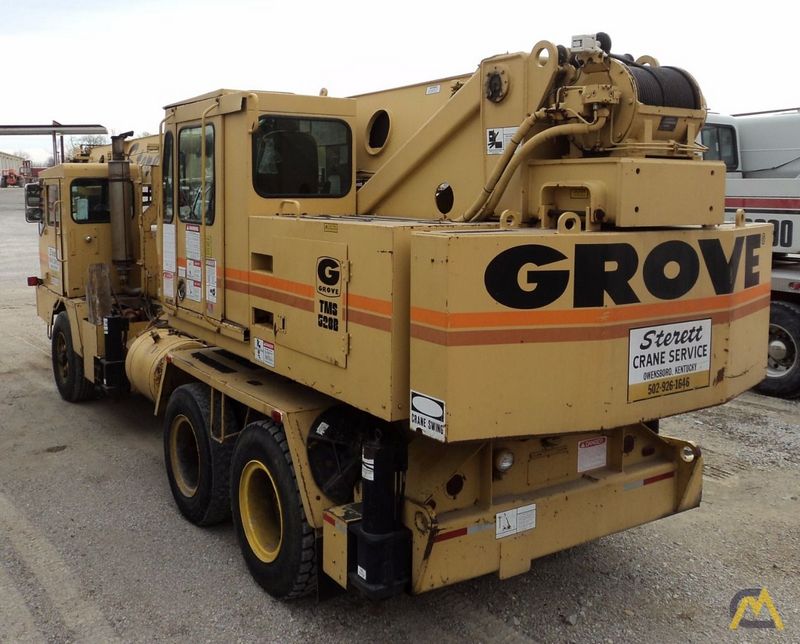

Grove TMS528B
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 40 ft in (12.2 m) |
| Max Height @ Max Raise Angle - No Jib | 86 ft in (26.22 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 70 ft in (21.34 m) |
| Max Elevating Angle | 75 degrees |
| Max Lift Capacity | 56000 lb (25401.18 kg) |
| Swing Speed | 3 rpm |
| Number Of Sections | 3 |
Dimensions
| Transport Length | 37.2 ft in (11338 mm) |
| Transport Width | 7.98 ft in (2432 mm) |
| Transport Height | 11.1 ft in (3383 mm) |
| Ground Clearance | 0.78 ft in (235 mm) |
| Width W/ Outriggers Extended | 18.92 ft in (5766 mm) |
| Carrier Length | 27.68 ft in (8436 mm) |
| Upper Structure Tail Swing Radius | 11.42 ft in (3480 mm) |
Carrier Engine
| Make | Grove |
| Model | GM8.2L |
| Gross Power | 205.2 hp (153 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 383 lb ft (519.3 Nm) |
| Torque Measured @ | 1700 rpm |
| Displacement | 500 cu in (8.2 L) |
| Number Of Cylinders | 8 |
Operational
| Operating Weight | 46644 lb (21157.4 kg) |
| Number Of Axels | 3 |
| Carrier Fuel Capacity | 60 gal (227.2 L) |
| Upper Structure Hydraulic System Fluid Capacity | 88 gal (333.2 L) |
| Operating Voltage | 24 V |
| Tire Size | front 15.00x22.5-16PR rear9.00x20-10PR |
Transmission
| Transmission Type | Manual |
| Number Of Forward Gears | 13 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 52 mph (83.7 km/h) |
Hydraulic
| Pump Flow Capacity | 112.5 gal/min (425.9 L/min) |
