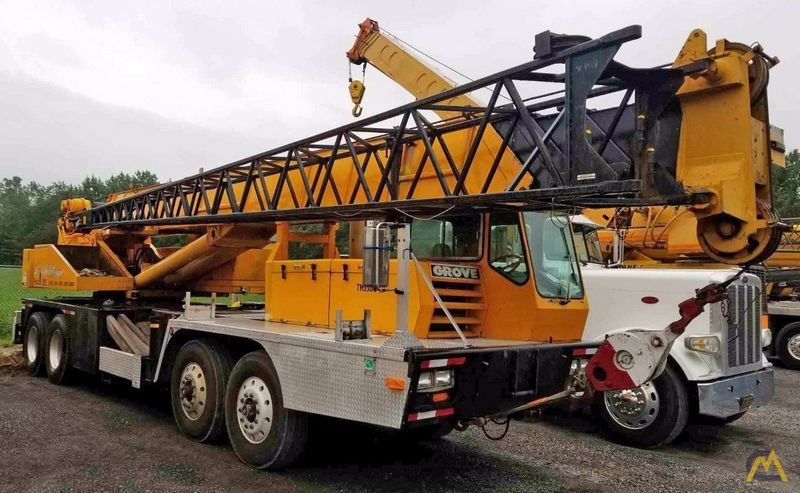

Grove TMS300
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 33 ft in (10.06 m) |
| Max Height @ Max Raise Angle - No Jib | 112 ft in (34.14 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 3 |
| Swing Speed | 2.6 rpm |
| Max Lift Capacity | 66138.68 lb (30000 kg) |
Dimensions
| Transport Length | 41.01 ft in (12497 mm) |
| Transport Width | 8 ft in (2438 mm) |
| Transport Height | 10.71 ft in (3264 mm) |
| Ground Clearance | 0.76 ft in (229 mm) |
| Width W/ Outriggers Extended | 18 ft in (5486 mm) |
| Carrier Length | 35.17 ft in (10719 mm) |
| Upper Structure Tail Swing Radius | 10.46 ft in (3188 mm) |
Upper Structure Engine
| Make | Grove |
Carrier Engine
| Make | Grove |
| Model | 6-71N |
| Net Power | 203 hp (151.4 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 551 lb ft (747.1 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 426 cu in (7 L) |
Operational
| Operating Weight | 59876 lb (27159.3 kg) |
| Number Of Axels | 4 |
| Carrier Fuel Capacity | 90 gal (340.7 L) |
| Upper Structure Hydraulic System Fluid Capacity | 127 gal (480.8 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | front 12.00x20-16PR rear 11.00x20-14PR |
Transmission
| Transmission Type | Fuller Roadranger RTO613 |
| Number Of Forward Gears | 13 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 52.7 mph (84.7 km/h) |
