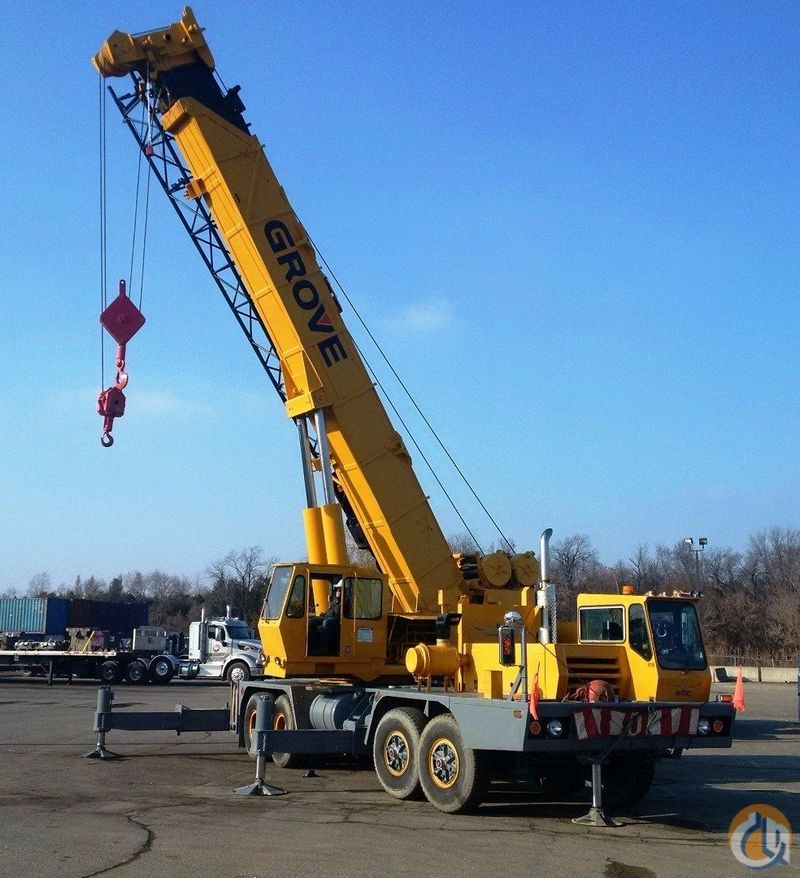

Grove TM890
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 36 ft in (10.98 m) |
| Max Height @ Max Raise Angle - No Jib | 114 ft in (34.75 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 110 ft in (33.53 m) |
| Max Elevating Angle | 80 degrees |
| Max Lift Capacity | 180000 lb (81646.64 kg) |
| Swing Speed | 1.8 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 45.98 ft in (14014 mm) |
| Transport Width | 9.8 ft in (2986 mm) |
| Transport Height | 12.6 ft in (3840 mm) |
| Ground Clearance | 1.15 ft in (349 mm) |
| Width W/ Outriggers Extended | 27.94 ft in (8515 mm) |
| Carrier Length | 43.5 ft in (13257 mm) |
| Upper Structure Tail Swing Radius | 12.7 ft in (3870 mm) |
Upper Structure Engine
| Number Of Cylinders | 8 |
| Make | Grove |
| Model | Detroit 8.2L |
| Gross Power | 199.9 hp (149 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 408 lb ft (553.2 Nm) |
| Torque Measured @ | 1700 rpm |
| Displacement | 500.4 cu in (8.2 L) |
Carrier Engine
| Make | Grove |
| Model | 8V-71TA |
| Gross Power | 370.2 hp (276 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 983 lb ft (1332.8 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 568 cu in (9.4 L) |
Operational
| Operating Weight | 134870 lb (61176.1 kg) |
| Number Of Axels | 6 |
| Carrier Fuel Capacity | 100 gal (378.6 L) |
| Upper Structure Hydraulic System Fluid Capacity | 305 gal (1154.6 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00Rx20 |
Transmission
| Transmission Type | Fuller Roadranger RTOO11613 |
| Number Of Forward Gears | 13 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 45 mph (72.5 km/h) |
