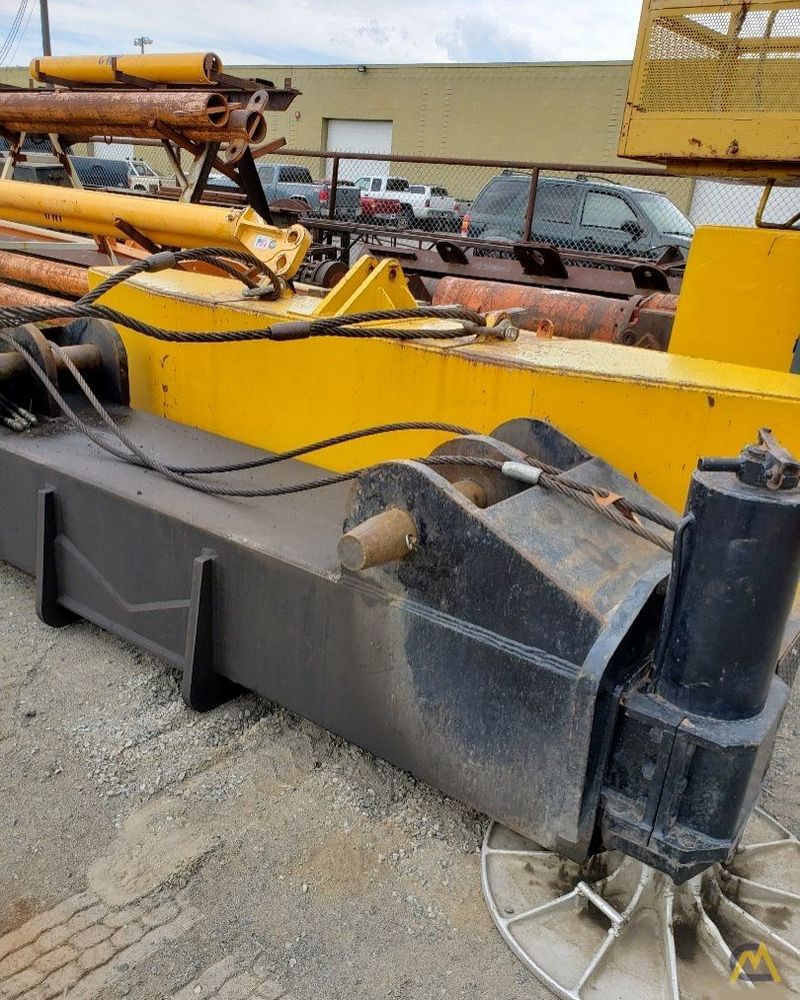

Grove TM800 12x6 drive
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 36 ft in (10.98 m) |
| Max Height @ Max Raise Angle - No Jib | 114 ft in (34.75 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 4 |
| Max Lift Capacity | 159835.13 lb (72500 kg) |
Dimensions
| Transport Length | 44.83 ft in (13664.19 mm) |
| Transport Width | 9.84 ft in (2997 mm) |
| Transport Height | 12.17 ft in (3708 mm) |
| Ground Clearance | 12 ft in (3657.6 mm) |
| Width W/ Outriggers Extended | 23 ft in (7010.4 mm) |
| Carrier Length | 39.65 ft in (12084 mm) |
Upper Structure Engine
| Make | Grove |
| Model | 6V-53N |
| Net Power | 178 hp (132.8 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 410 lb ft (555.9 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 318.4 cu in (5.3 L) |
Carrier Engine
| Make | Grove |
| Model | NTF-365 |
| Gross Power | 365 hp (272.2 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 930 lb ft (1261 Nm) |
| Torque Measured @ | 1650 rpm |
| Displacement | 855 cu in (14.1 L) |
Operational
| Operating Weight | 115043 lb (52182.7 kg) |
| Number Of Axels | 6 |
| Upper Structure Fuel Capacity | 78 gal (295.3 L) |
| Upper Structure Hydraulic System Fluid Capacity | 305 gal (1154.6 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Tire Size | 14.00x20,18ply |
Transmission
| Transmission Type | Fuller TO 905C |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 36.7 mph (59 km/h) |
