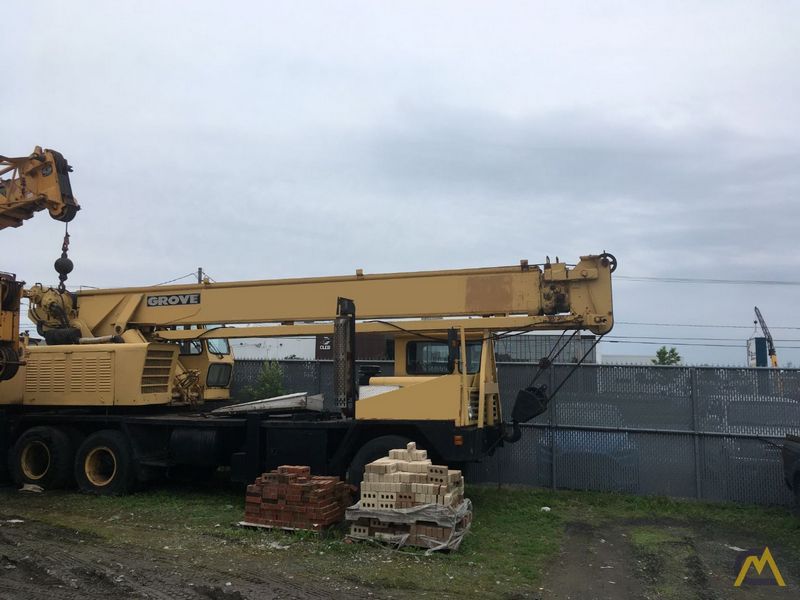

Grove TM225T 6x4 drive
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 32 ft in (9.76 m) |
| Max Height @ Max Raise Angle - No Jib | 84 ft in (25.61 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 75 ft in (22.86 m) |
| Max Elevating Angle | 75 degrees |
| Swing Speed | 2.5 rpm |
| Max Lift Capacity | 50000 lb (22679.62 kg) |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 30.08 ft in (9168.39 mm) |
| Width W/ Outriggers Extended | 15 ft in (4572 mm) |
| Carrier Length | 26.58 ft in (8101.59 mm) |
| Upper Structure Tail Swing Radius | 7.71 ft in (2350.01 mm) |
Upper Structure Engine
| Make | Grove |
| Model | 300 |
| Gross Power | 149 hp (111.2 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 284 lb ft (385.1 Nm) |
| Torque Measured @ | 2000 rpm |
Carrier Engine
| Make | Grove |
| Model | RD501 |
| Gross Power | 215 hp (160.4 kw) |
| Max Torque | 451 lb ft (611.5 Nm) |
| Displacement | 501 cu in (8.3 L) |
Operational
| Operating Weight | 56300 lb (25537.3 kg) |
| Number Of Axels | 3 |
| Carrier Fuel Capacity | 60 gal (227.2 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 75 amps |
| Tire Size | 11.00x20 |
Transmission
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 49.1 mph (79.1 km/h) |
| Max Speed - Reverse | 6.4 mph (10.3 km/h) |
