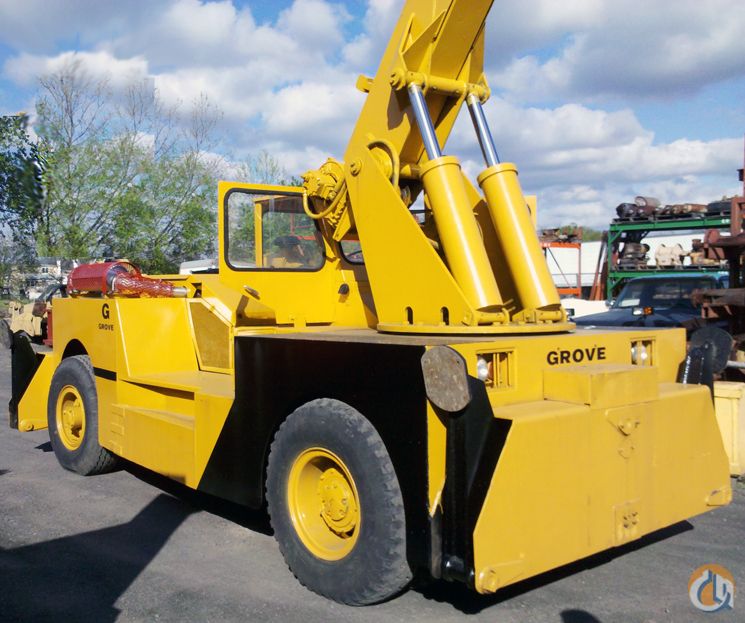

Grove IND1012
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 6 ft in (1.83 m) |
| Max Height @ Max Raise Angle - No Jib | 42 ft in (12.81 m) |
| Min Working Radius | 6 ft in (1.83 m) |
| Max Working Radius | 42 ft in (12.81 m) |
| Max Elevating Angle | 70 degrees |
| Max Lift Capacity | 35000 lb (15875.74 kg) |
| Number Of Sections | 3 |
Dimensions
| Transport Length | 28.44 ft in (8668 mm) |
| Transport Width | 8.22 ft in (2503 mm) |
| Transport Height | 10.24 ft in (3121 mm) |
| Ground Clearance | 1.18 ft in (359 mm) |
| Width W/ Outriggers Extended | 14 ft in (4267 mm) |
| Carrier Length | 19.59 ft in (5969 mm) |
Carrier Engine
| Make | Grove |
| Model | 4-53N |
| Gross Power | 127 hp (94.8 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 270 lb ft (366.1 Nm) |
| Torque Measured @ | 2400 rpm |
Operational
| Operating Weight | 56100 lb (25446.6 kg) |
| Number Of Axels | 2 |
| Carrier Fuel Capacity | 43.1 gal (163 L) |
| Upper Structure Hydraulic System Fluid Capacity | 60 gal (227 L) |
| Operating Voltage | 12 V |
| Tire Size | 12x20-16PR |
Transmission
| Transmission Type | Fully Automatic |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 15.5 mph (25 km/h) |
