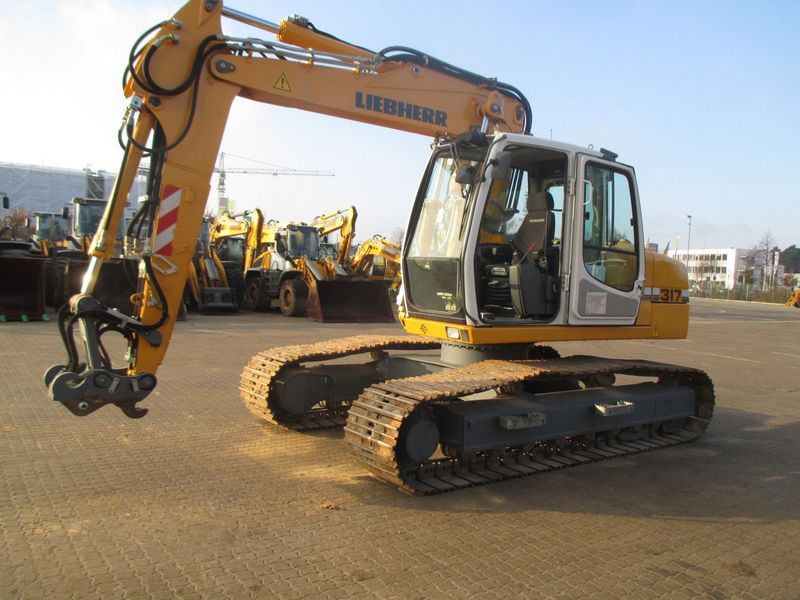

Liebherr R317
Browse All Liebherr or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 28.55 ft in (8700 mm) |
| Shipping Height Of Unit | 9.52 ft in (2900 mm) |
| Max Cutting Height | 32.49 ft in (9900 mm) |
| Max Loading Height | 23.3 ft in (7100 mm) |
| Max Reach Along Ground | 28.88 ft in (8800 mm) |
| Max Digging Depth | 17.89 ft in (5450 mm) |
| Boom/Stick Option (Hex) 1 | Boom 3400mm / Stick 2250mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 28.55 ft in (8700 mm) |
| Max Cutting Height | 32.98 ft in (10050 mm) |
| Shipping Height Of Unit | 9.68 ft in (2950 mm) |
| Max Loading Height | 23.79 ft in (7250 mm) |
| Max Reach Along Ground | 29.53 ft in (9000 mm) |
| Max Digging Depth | 18.54 ft in (5650 mm) |
| Boom/Stick Option (Hex) 2 | Boom 3400mm / Stick 2450mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 28.55 ft in (8700 mm) |
| Max Cutting Height | 336.29 ft in (102500 mm) |
| Max Loading Height | 24.28 ft in (7400 mm) |
| Shipping Height Of Unit | 10.01 ft in (3050 mm) |
| Max Reach Along Ground | 30.19 ft in (9200 mm) |
| Max Digging Depth | 19.2 ft in (5850 mm) |
| Boom/Stick Option (Hex) 3 | Boom 3400mm / Stick 2650mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 28.55 ft in (8700 mm) |
| Shipping Height Of Unit | 10.01 ft in (3050 mm) |
| Max Cutting Height | 34.13 ft in (10400 mm) |
| Max Loading Height | 24.78 ft in (7550 mm) |
| Max Reach Along Ground | 31.17 ft in (9500 mm) |
| Max Digging Depth | 20.35 ft in (6200 mm) |
| Boom/Stick Option (Hex) 4 | Boom 3400mm / Stick 3050mm |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 28.38 ft in (8650 mm) |
| Shipping Height Of Unit | 9.85 ft in (3000 mm) |
| Max Cutting Height | 29.2 ft in (8900 mm) |
| Max Loading Height | 19.85 ft in (6050 mm) |
| Max Reach Along Ground | 28.55 ft in (8700 mm) |
| Max Digging Depth | 18.21 ft in (5550 mm) |
| Boom/Stick Option (Hex) 5 | Boom 5000mm / Stick 2250mm |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 29.53 ft in (9000 mm) |
| Max Loading Height | 20.18 ft in (6150 mm) |
| Shipping Length Of Unit | 28.38 ft in (8650 mm) |
| Max Reach Along Ground | 29.2 ft in (8900 mm) |
| Shipping Height Of Unit | 10.01 ft in (3050 mm) |
| Max Digging Depth | 18.71 ft in (5700 mm) |
| Boom/Stick Option (Hex) 6 | Boom 5000mm / Stick 2450mm |
Dimensions
| Ground Clearance | 1.55 ft in (470 mm) |
| Height To Top Of Cab | 9.83 ft in (2995 mm) |
| Width To Outside Of Tracks | 8.54 ft in (2600 mm) |
| Length Of Track On Ground | 10.41 ft in (3170 mm) |
| Tail Swing Radius | 8.04 ft in (2450 mm) |
| Removal Counterweight Clearance | 3.58 ft in (1090 mm) |
Undercarriage
| Track Gauge | 6.57 ft in (2000 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.11 mph (5 km/h) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 7 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4M1013EC |
| Net Power | 117 hp (87.3 kw) |
| Power Measured @ | 1800 rpm |
| Aspiration | Turbo-charged |
| Displacement | 293 cu in (4.8 L) |
Operational
| Operating Weight | 39021.9 lb (17700 kg) |
| Fuel Capacity | 76.7 gal (290 L) |
| Hydraulic System Fluid Capacity | 45 gal (170 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 5076.4 psi (35000 kPa) |
| Hydraulic Pump Flow Capacity | 78.5 gal/min (297 L/min) |
Swing Mechanism
| Swing Torque | 31 lb ft (42 Nm) |
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 1.2 yd3 (0.9 m3) |
