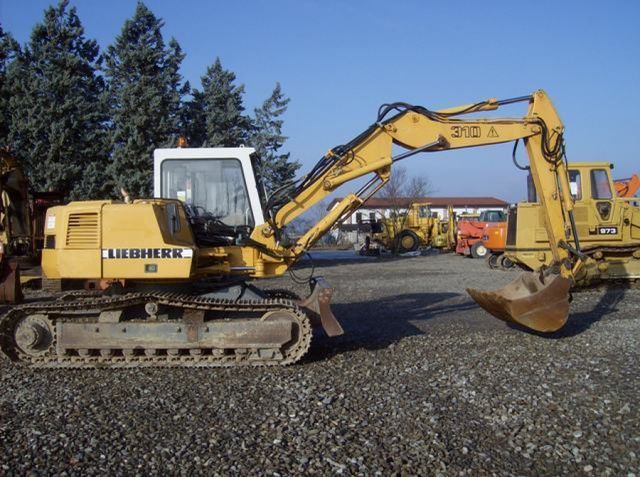

Liebherr R310B
Browse All Liebherr or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 27.73 ft in (8450 mm) |
| Max Loading Height | 21.66 ft in (6600 mm) |
| Max Reach Along Ground | 26.74 ft in (8150 mm) |
| Max Digging Depth | 12.64 ft in (3850 mm) |
| Boom/Stick Option (Hex) 1 | standard |
Dimensions
| Ground Clearance | 1.43 ft in (435 mm) |
| Width To Outside Of Tracks | 8.21 ft in (2500 mm) |
| Length Of Track On Ground | 5.52 ft in (1680 mm) |
| Tail Swing Radius | 10.18 ft in (3100 mm) |
Undercarriage
| Shoe Size | 19.69 in (500 mm) |
Engine
| Engine Make | 2349 |
| Gross Power | 77.8 hp (58 kw) |
Operational
| Operating Weight | 30203.4 lb (13700 kg) |
| Hydraulic System Relief Valve Pressure | 4641.3 psi (32000 kPa) |
| Hydraulic Pump Flow Capacity | 107.3 gal/min (406 L/min) |
