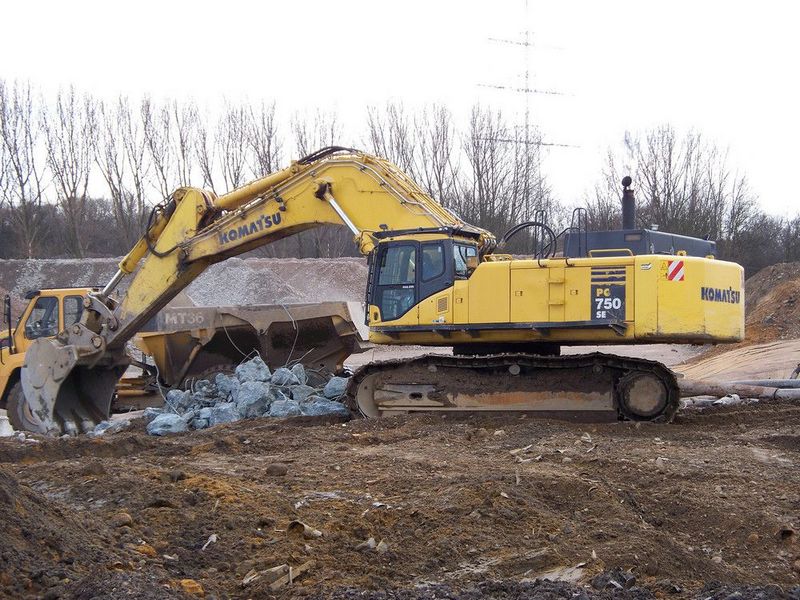

Komatsu PC750SE-7
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 42.75 ft in (13030 mm) |
| Shipping Height Of Unit | 15.15 ft in (4615 mm) |
| Max Cutting Height | 37.18 ft in (11330 mm) |
| Max Loading Height | 24.69 ft in (7525 mm) |
| Max Reach Along Ground | 39.19 ft in (11945 mm) |
| Max Vertical Wall Digging Depth | 13.39 ft in (4080 mm) |
| Max Digging Depth | 23.4 ft in (7130 mm) |
| Boom/Stick Option (Hex) 1 | boom 8040mm w/ arm 2945mm |
Dimensions
| Ground Clearance | 2.76 ft in (840 mm) |
| Height To Top Of Cab | 11.31 ft in (3445 mm) |
| Width To Outside Of Tracks | 13.49 ft in (4110 mm) |
| Length Of Track On Ground | 14.77 ft in (4500 mm) |
| Tail Swing Radius | 14.11 ft in (4300 mm) |
| Removal Counterweight Clearance | 5.12 ft in (1560 mm) |
Undercarriage
| Track Gauge | 11.48 ft in (3500 mm) |
| Shoe Size | 24.02 in (610 mm) |
| Drawbar Pull | 125663 lb (558.98 kN) |
| Number Of Carrier Rollers Per Side | 3 |
| Max Travel Speed | 2.61 mph (4.2 km/h) |
| Number Of Shoes Per Side | 47 |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 18 psi (124.11 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D140E-3 |
| Net Power | 454 hp (338 kw) |
| Power Measured @ | 1800 rpm |
| Aspiration | Turbocharged with aftercooler |
| Displacement | 930.1 cu in (15.3 L) |
Operational
| Operating Weight | 168091.5 lb (76245 kg) |
| Fuel Capacity | 232.5 gal (880 L) |
| Cooling System Fluid Capacity | 22.5 gal (85 L) |
| Hydraulic System Fluid Capacity | 116.3 gal (440 L) |
| Engine Oil Capacity | 14.6 gal (55 L) |
| Swing Drive Fluid Capacity | 6.5 gal (24.5 L) |
| Hydraulic Pump Flow Capacity | 129 gal/min (488 L/min) |
Swing Mechanism
| Swing Speed | 6.8 rpm |
Buckets
| Reference Bucket Capacity | 5.3 yd3 (4 m3) |
| Minimum Bucket Capacity | 4.8 yd3 (3.6 m3) |
| Maximum Bucket Capacity | 7.9 yd3 (6 m3) |
