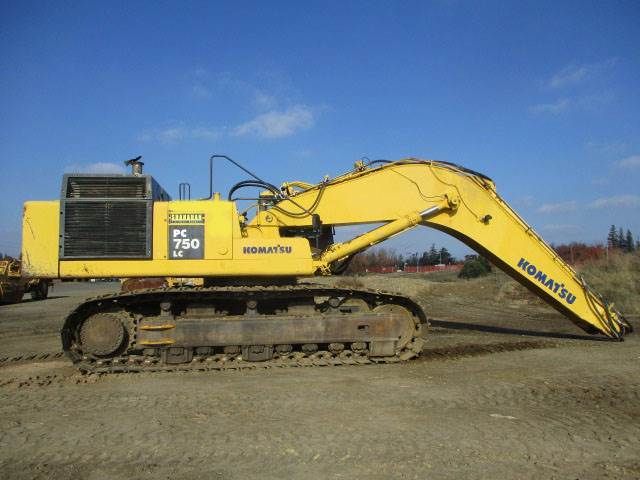

Komatsu PC750-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 46.26 ft in (14100 mm) |
| Shipping Height Of Unit | 15.85 ft in (4830 mm) |
| Max Cutting Height | 39.16 ft in (11935 mm) |
| Max Loading Height | 26.71 ft in (8140 mm) |
| Max Reach Along Ground | 43.84 ft in (13360 mm) |
| Max Vertical Wall Digging Depth | 20.59 ft in (6275 mm) |
| Max Digging Depth | 27.71 ft in (8445 mm) |
| Boom/Stick Option (Hex) 1 | Boom 26'11" (8200mm)/Stick 11'10" (3600mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 45.79 ft in (13955 mm) |
| Max Cutting Height | 39.72 ft in (12105 mm) |
| Shipping Height Of Unit | 19.59 ft in (5970 mm) |
| Max Loading Height | 27.25 ft in (8305 mm) |
| Max Reach Along Ground | 46.63 ft in (14210 mm) |
| Max Vertical Wall Digging Depth | 23.82 ft in (7260 mm) |
| Max Digging Depth | 30.98 ft in (9440 mm) |
| Boom/Stick Option (Hex) 2 | Boom 26'11" (8200mm)/Stick 15'1" (4600mm) |
Dimensions
| Ground Clearance | 2.76 ft in (840 mm) |
| Height To Top Of Cab | 11.54 ft in (3515 mm) |
| Width To Outside Of Tracks | 13.49 ft in (4110 mm) |
| Length Of Track On Ground | 14.77 ft in (4500 mm) |
| Tail Swing Radius | 14.11 ft in (4300 mm) |
| Removal Counterweight Clearance | 5.11 ft in (1555 mm) |
Undercarriage
| Track Gauge | 11.49 ft in (3500 mm) |
| Shoe Size | 24.02 in (610 mm) |
| Max Travel Speed | 2.61 mph (4.2 km/h) |
| Ground Pressure | 16.8 psi (115.84 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D140E |
| Gross Power | 443.9 hp (331 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 930.1 cu in (15.3 L) |
Operational
| Operating Weight | 156263.7 lb (70880 kg) |
| Fuel Capacity | 232.5 gal (880 L) |
| Hydraulic System Fluid Capacity | 116.3 gal (440 L) |
| Hydraulic System Relief Valve Pressure | 4550 psi (31371.2 kPa) |
| Hydraulic Pump Flow Capacity | 268.2 gal/min (1015 L/min) |
Swing Mechanism
| Swing Speed | 5.7 rpm |
Buckets
| Reference Bucket Capacity | 5.9 yd3 (4.5 m3) |
| Minimum Bucket Capacity | 5 yd3 (3.8 m3) |
| Maximum Bucket Capacity | 5.9 yd3 (4.5 m3) |
