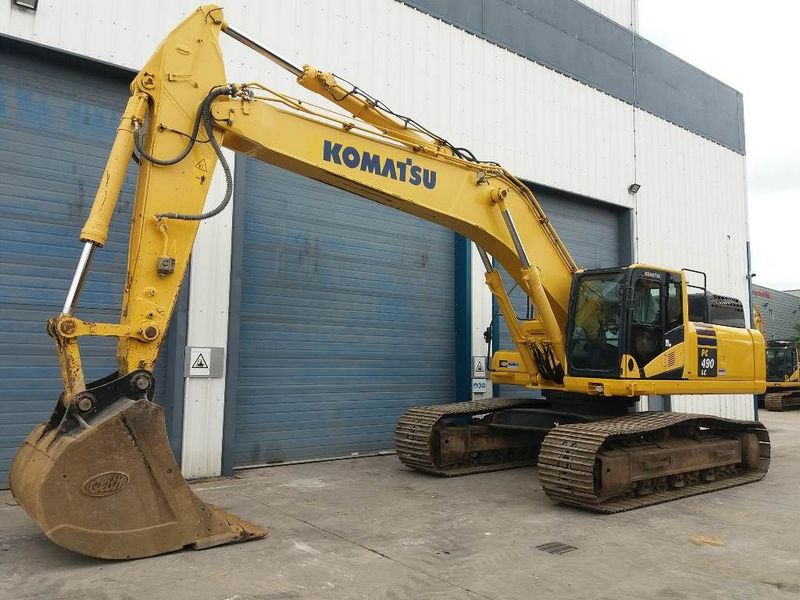

Komatsu PC490LC-10
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Dimensions
| Ground Clearance | 1.81 ft in (550 mm) |
| Height To Top Of Cab | 11.03 ft in (3360 mm) |
| Width To Outside Of Tracks | 11.95 ft in (3640 mm) |
| Length Of Track On Ground | 17.67 ft in (5385 mm) |
| Tail Swing Radius | 14.28 ft in (4350 mm) |
| Removal Counterweight Clearance | 4.55 ft in (1385 mm) |
Undercarriage
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
| Drawbar Pull | 73987 lb (329.12 kN) |
| Number Of Shoes Per Side | 49 |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D125E-6-A |
| Net Power | 359 hp (267.8 kw) |
| Gross Power | 362 hp (270 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 673.8 cu in (11.1 L) |
Operational
| Operating Weight | 109250 lb (49555 kg) |
| Fuel Capacity | 172 gal (651.1 L) |
| Cooling System Fluid Capacity | 11.6 gal (44 L) |
| Hydraulic System Fluid Capacity | 65.5 gal (248 L) |
| Engine Oil Capacity | 10 gal (37.9 L) |
| Swing Drive Fluid Capacity | 5.3 gal (20.1 L) |
Swing Mechanism
| Swing Speed | 9 rpm |
| Swing Torque | 97024 lb ft (131546.9 Nm) |
