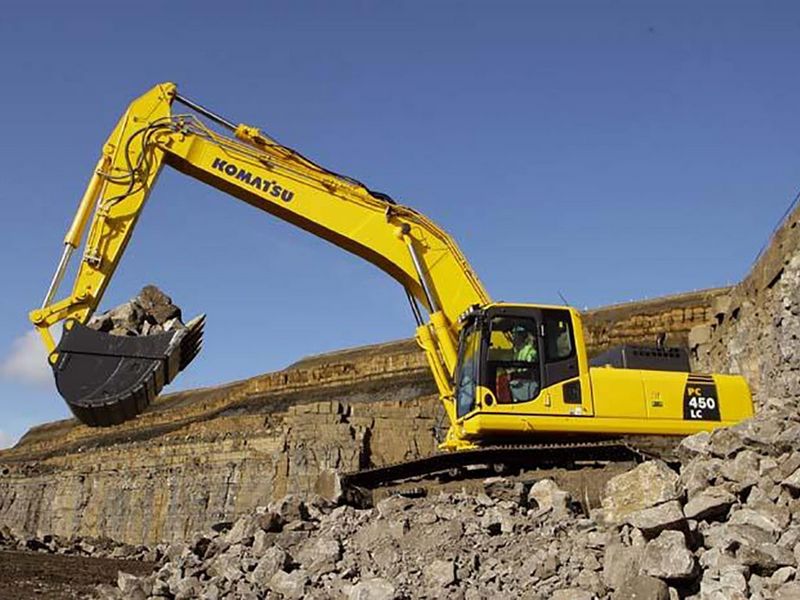

Komatsu PC450LC-6 MIGHTY
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 39.13 ft in (11925 mm) |
| Shipping Height Of Unit | 11.91 ft in (3630 mm) |
| Max Cutting Height | 35.83 ft in (10920 mm) |
| Max Loading Height | 24.84 ft in (7570 mm) |
| Max Reach Along Ground | 38.75 ft in (11810 mm) |
| Max Vertical Wall Digging Depth | 22.48 ft in (6850 mm) |
| Max Digging Depth | 25.46 ft in (7760 mm) |
| Boom/Stick Option (Hex) 1 | Boom 23'2" (7060mm)/Stick 11'1" (3380mm) |
Dimensions
| Ground Clearance | 1.83 ft in (555 mm) |
| Height To Top Of Cab | 10.72 ft in (3265 mm) |
| Width To Outside Of Tracks | 10.96 ft in (3340 mm) |
| Length Of Track On Ground | 14.28 ft in (4350 mm) |
| Tail Swing Radius | 11.49 ft in (3500 mm) |
| Removal Counterweight Clearance | 4.34 ft in (1320 mm) |
Undercarriage
| Track Gauge | 8.99 ft in (2740 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 11.1 psi (76.54 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SA6D125E |
| Gross Power | 305.8 hp (228 kw) |
| Power Measured @ | 2050 rpm |
| Displacement | 673.8 cu in (11.1 L) |
Operational
| Operating Weight | 95901.1 lb (43500 kg) |
| Fuel Capacity | 159.9 gal (605 L) |
| Hydraulic System Fluid Capacity | 71.4 gal (270 L) |
| Hydraulic System Relief Valve Pressure | 5050 psi (34818.5 kPa) |
| Hydraulic Pump Flow Capacity | 172.3 gal/min (652 L/min) |
Swing Mechanism
| Swing Speed | 9.3 rpm |
Buckets
| Reference Bucket Capacity | 2.4 yd3 (1.8 m3) |
| Minimum Bucket Capacity | 2.4 yd3 (1.8 m3) |
| Maximum Bucket Capacity | 2.7 yd3 (2.1 m3) |
