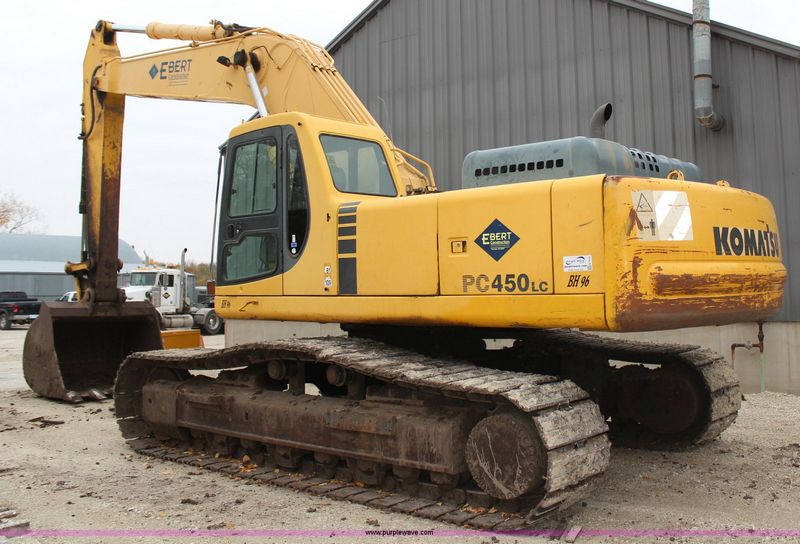

Komatsu PC450LC-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 34.21 ft in (10425 mm) |
| Max Loading Height | 23.58 ft in (7185 mm) |
| Max Reach Along Ground | 35.44 ft in (10800 mm) |
| Max Vertical Wall Digging Depth | 17.08 ft in (5205 mm) |
| Max Digging Depth | 21.84 ft in (6655 mm) |
| Boom/Stick Option (Hex) 1 | Monoboom w/ stick 2200mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 34.24 ft in (10435 mm) |
| Max Loading Height | 23.71 ft in (7225 mm) |
| Max Reach Along Ground | 36.72 ft in (11190 mm) |
| Max Vertical Wall Digging Depth | 22.86 ft in (6965 mm) |
| Max Digging Depth | 23.48 ft in (7155 mm) |
| Boom/Stick Option (Hex) 2 | Monoboom w/ stick 2550mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 36.26 ft in (11050 mm) |
| Max Loading Height | 25.27 ft in (7700 mm) |
| Max Reach Along Ground | 38.65 ft in (11780 mm) |
| Max Vertical Wall Digging Depth | 22.05 ft in (6720 mm) |
| Max Digging Depth | 22.05 ft in (6720 mm) |
| Boom/Stick Option (Hex) 3 | Monoboom w/ stick 3185mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 39.38 ft in (12000 mm) |
| Shipping Height Of Unit | 12.46 ft in (3795 mm) |
| Max Cutting Height | 38.18 ft in (11635 mm) |
| Max Loading Height | 25.78 ft in (7855 mm) |
| Max Reach Along Ground | 40.44 ft in (12325 mm) |
| Max Digging Depth | 27.09 ft in (8255 mm) |
| Max Vertical Wall Dig Depth | 23.46 ft in (7150 mm) |
| Boom/Stick Option (Hex) 4 | Monoboom w/ stick 4020mm |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 39.59 ft in (12065 mm) |
| Shipping Height Of Unit | 12.19 ft in (3715 mm) |
| Max Cutting Height | 44.54 ft in (13573 mm) |
| Max Loading Height | 32.53 ft in (9914 mm) |
| Max Reach Along Ground | 39.21 ft in (11949 mm) |
| Max Digging Depth | 17.67 ft in (5385 mm) |
| Boom/Stick Option (Hex) 5 | Straight boom w/ stick 2400mm |
| Max Vertical Wall Dig Depth | 14.13 ft in (4306 mm) |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 47.4 ft in (14446 mm) |
| Max Loading Height | 35.33 ft in (10767 mm) |
| Shipping Length Of Unit | 39.31 ft in (11980 mm) |
| Max Reach Along Ground | 42.5 ft in (12953 mm) |
| Shipping Height Of Unit | 11.93 ft in (3635 mm) |
| Max Digging Depth | 20.89 ft in (6366 mm) |
| Boom/Stick Option (Hex) 6 | Straight boom w/ stick 3400mm |
| Max Vertical Wall Dig Depth | 16.3 ft in (4968 mm) |
Dimensions
| Ground Clearance | 1.83 ft in (555 mm) |
| Height To Top Of Cab | 10.72 ft in (3265 mm) |
| Width To Outside Of Tracks | 11.72 ft in (3570 mm) |
| Length Of Track On Ground | 14.28 ft in (4350 mm) |
| Tail Swing Radius | 11.98 ft in (3650 mm) |
| Removal Counterweight Clearance | 4.34 ft in (1320 mm) |
Undercarriage
| Track Gauge | 9.42 ft in (2870 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.36 mph (5.4 km/h) |
| Number Of Shoes Per Side | 49 |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 11.1 psi (76.54 kPa) |
| Drawbar Pull | 74957 lb (333.43 kN) |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SA6D125E-2 |
| Net Power | 306 hp (228.2 kw) |
| Gross Power | 323.5 hp (241.3 kw) |
| Power Measured @ | 1950 rpm |
| Displacement | 673.8 cu in (11.1 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 96474.3 lb (43760 kg) |
| Fuel Capacity | 159.9 gal (605 L) |
| Cooling System Fluid Capacity | 12.5 gal (47 L) |
| Hydraulic System Fluid Capacity | 71.4 gal (270 L) |
| Engine Oil Capacity | 8.5 gal (32 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 5.7 gal (21.5 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic Pump Flow Capacity | 172.3 gal/min (652 L/min) |
Swing Mechanism
| Swing Speed | 9.1 rpm |
Buckets
| Reference Bucket Capacity | 2.7 yd3 (2 m3) |
