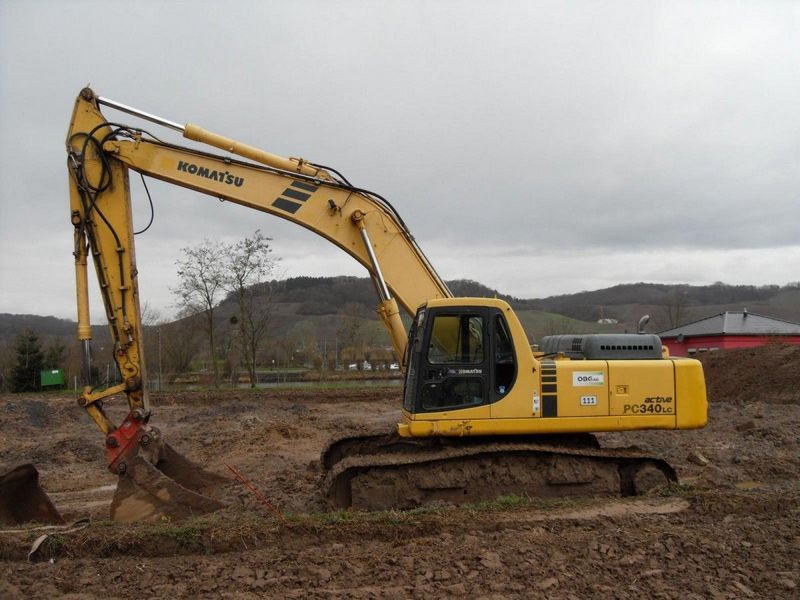

Komatsu PC340NLC-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.41 ft in (11097 mm) |
| Shipping Height Of Unit | 11.06 ft in (3370 mm) |
| Max Cutting Height | 31.44 ft in (9580 mm) |
| Max Loading Height | 21.64 ft in (6595 mm) |
| Max Reach Along Ground | 32.65 ft in (9950 mm) |
| Max Vertical Wall Digging Depth | 16.8 ft in (5120 mm) |
| Max Digging Depth | 20.85 ft in (6355 mm) |
| Boom/Stick Option (Hex) 1 | boom w/ stick 2200mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.05 ft in (10986 mm) |
| Max Cutting Height | 32.7 ft in (9965 mm) |
| Shipping Height Of Unit | 11.2 ft in (3411 mm) |
| Max Loading Height | 22.63 ft in (6895 mm) |
| Max Reach Along Ground | 33.98 ft in (10355 mm) |
| Max Vertical Wall Digging Depth | 19.3 ft in (5880 mm) |
| Max Digging Depth | 22 ft in (6705 mm) |
| Boom/Stick Option (Hex) 2 | boom w/ stick 2550mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 35.88 ft in (10935 mm) |
| Max Cutting Height | 33.5 ft in (10210 mm) |
| Max Loading Height | 23.33 ft in (7110 mm) |
| Shipping Height Of Unit | 10.68 ft in (3255 mm) |
| Max Reach Along Ground | 35.83 ft in (10920 mm) |
| Max Vertical Wall Digging Depth | 21.26 ft in (6480 mm) |
| Max Digging Depth | 24.22 ft in (7380 mm) |
| Boom/Stick Option (Hex) 3 | boom w/ stick 3185mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 36.01 ft in (10973 mm) |
| Shipping Height Of Unit | 11.92 ft in (3631 mm) |
| Max Cutting Height | 34.62 ft in (10550 mm) |
| Max Loading Height | 24.58 ft in (7490 mm) |
| Max Reach Along Ground | 38.49 ft in (11730 mm) |
| Max Digging Depth | 26.84 ft in (8180 mm) |
| Boom/Stick Option (Hex) 4 | boom w/ stick 4020mm |
| Max Vertical Wall Dig Depth | 23.89 ft in (7280 mm) |
Dimensions
| Ground Clearance | 1.63 ft in (495 mm) |
| Height To Top Of Cab | 10.27 ft in (3130 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 13.23 ft in (4030 mm) |
| Tail Swing Radius | 10.78 ft in (3285 mm) |
| Removal Counterweight Clearance | 3.9 ft in (1186 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 8.97 psi (61.78 kPa) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 49 |
| Drawbar Pull | 50706 lb (225.56 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D108E-2 |
| Net Power | 232 hp (173.1 kw) |
| Gross Power | 245 hp (182.7 kw) |
| Power Measured @ | 2050 rpm |
| Displacement | 436.4 cu in (7.2 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 73039.2 lb (33130 kg) |
| Fuel Capacity | 142.7 gal (540 L) |
| Cooling System Fluid Capacity | 8 gal (30.2 L) |
| Hydraulic System Fluid Capacity | 54.2 gal (205 L) |
| Engine Oil Capacity | 7.4 gal (28 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.4 gal (12.5 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 5049.3 psi (34813.6 kPa) |
| Hydraulic Pump Flow Capacity | 141.6 gal/min (536 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 1.8 yd3 (1.4 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 2.4 yd3 (1.8 m3) |
