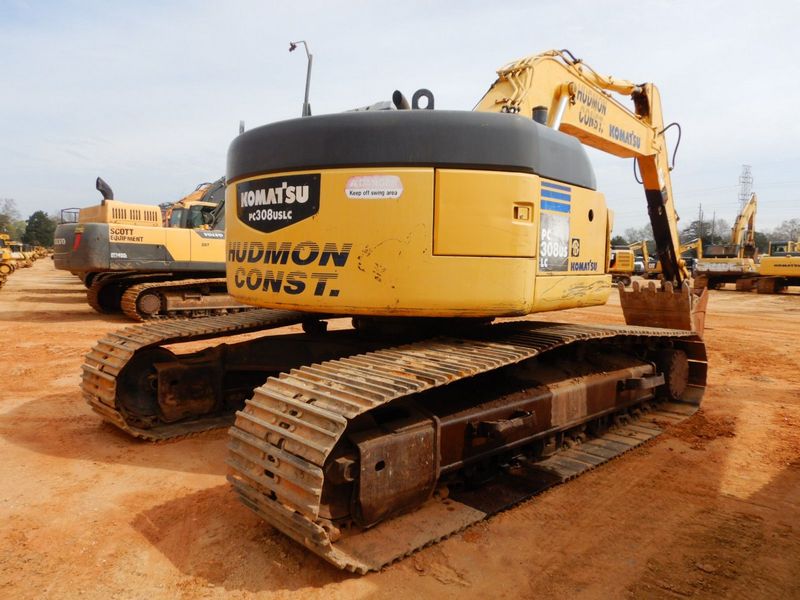

Komatsu PC308USLC-3
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.33 ft in (9545 mm) |
| Max Cutting Height | 33.25 ft in (10130 mm) |
| Max Loading Height | 23.58 ft in (7200 mm) |
| Max Reach Along Ground | 34.25 ft in (10460 mm) |
| Max Vertical Wall Digging Depth | 19.43 ft in (5930 mm) |
| Max Digging Depth | 21.17 ft in (6460 mm) |
| Boom/Stick Option (Hex) 1 | 3045mm 10'0'' |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 31.33 ft in (3500 mm) |
| Max Cutting Height | 33.25 ft in (10130 mm) |
| Max Loading Height | 23.58 ft in (7200 mm) |
| Max Reach Along Ground | 34.25 ft in (10460 mm) |
| Max Vertical Wall Digging Depth | 19.43 ft in (5930 mm) |
| Max Digging Depth | 22.75 ft in (6940 mm) |
| Boom/Stick Option (Hex) 2 | 3500mm 11'6" |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 31.17 ft in (9500 mm) |
| Max Cutting Height | 35.17 ft in (10730 mm) |
| Max Loading Height | 26.17 ft in (7985 mm) |
| Max Reach Along Ground | 36.67 ft in (11185 mm) |
| Max Vertical Wall Digging Depth | 22.67 ft in (6920 mm) |
| Max Digging Depth | 24.83 ft in (7560 mm) |
| Boom/Stick Option (Hex) 3 | 4200mm 13'9" |
Dimensions
| Ground Clearance | 1.67 ft in (500 mm) |
| Height To Top Of Cab | 10.25 ft in (3130 mm) |
| Width To Outside Of Tracks | 11.33 ft in (3440 mm) |
| Length Of Track On Ground | 13.25 ft in (4030 mm) |
| Tail Swing Radius | 11.33 ft in (3450 mm) |
| Removal Counterweight Clearance | 3.92 ft in (1185 mm) |
Undercarriage
| Drawbar Pull | 59180 lb (26900 kN) |
| Number Of Shoes Per Side | 48 |
| Max Travel Speed | 2.9 mph (4.6 km/h) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D107E-1 |
| Net Power | 187 hp (140 kw) |
| Gross Power | 200 hp (149 kw) |
| Aspiration | Turbocharged and air to air aftercooled |
| Displacement | 408 cu in (6.7 L) |
Operational
| Operating Weight | 71938 lb (32630 kg) |
| Fuel Capacity | 103 gal (390 L) |
| Cooling System Fluid Capacity | 5.5 gal (21 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Engine Oil Capacity | 6.1 gal (23.1 L) |
| Swing Drive Fluid Capacity | 2.2 gal (8.2 L) |
Swing Mechanism
| Swing Torque | 64292 lb ft (8892 Nm) |
| Swing Speed | 9.5 rpm |
Buckets
| Reference Bucket Capacity | 1.6 yd3 (1.3 m3) |
| Minimum Bucket Capacity | 0.9 yd3 (0.7 m3) |
| Maximum Bucket Capacity | 2.5 yd3 (1.9 m3) |
