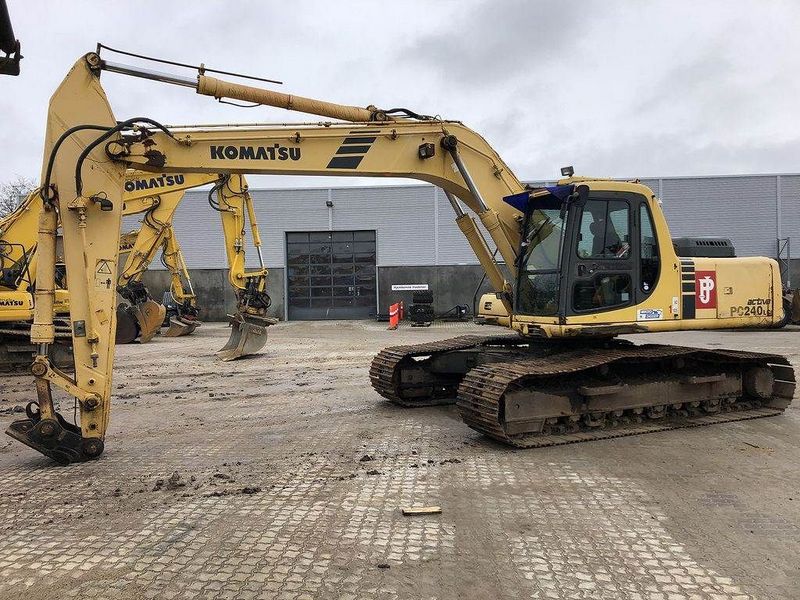

Komatsu PC240LC-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.94 ft in (9735 mm) |
| Shipping Height Of Unit | 9.86 ft in (3005 mm) |
| Max Cutting Height | 29.76 ft in (9070 mm) |
| Max Loading Height | 20.08 ft in (6120 mm) |
| Max Reach Along Ground | 29.83 ft in (9090 mm) |
| Max Vertical Wall Digging Depth | 15.75 ft in (4800 mm) |
| Max Digging Depth | 19.3 ft in (5880 mm) |
| Boom/Stick Option (Hex) 1 | Monoboom w/ stick 2000mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 32.26 ft in (9830 mm) |
| Max Cutting Height | 30.02 ft in (9150 mm) |
| Shipping Height Of Unit | 10.68 ft in (3255 mm) |
| Max Loading Height | 20.4 ft in (6215 mm) |
| Max Reach Along Ground | 31.07 ft in (9470 mm) |
| Max Vertical Wall Digging Depth | 16.88 ft in (5145 mm) |
| Max Digging Depth | 20.9 ft in (6370 mm) |
| Boom/Stick Option (Hex) 2 | Monoboom w/ stick 2500mm |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 32.09 ft in (9780 mm) |
| Max Cutting Height | 30.78 ft in (9380 mm) |
| Max Loading Height | 21.38 ft in (6515 mm) |
| Shipping Height Of Unit | 10.37 ft in (3160 mm) |
| Max Reach Along Ground | 32.81 ft in (10000 mm) |
| Max Vertical Wall Digging Depth | 19.72 ft in (6010 mm) |
| Max Digging Depth | 22.71 ft in (6920 mm) |
| Boom/Stick Option (Hex) 3 | Monoboom w/ stick 3000mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 31.79 ft in (9689 mm) |
| Shipping Height Of Unit | 10.72 ft in (3267 mm) |
| Max Cutting Height | 30.91 ft in (9421 mm) |
| Max Loading Height | 21.28 ft in (6485 mm) |
| Max Reach Along Ground | 29.82 ft in (9088 mm) |
| Max Digging Depth | 18.37 ft in (5599 mm) |
| Boom/Stick Option (Hex) 4 | two piece boom w/ stick 2000mm |
| Max Vertical Wall Dig Depth | 13.67 ft in (4165 mm) |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 31.88 ft in (9716 mm) |
| Shipping Height Of Unit | 11.38 ft in (3467 mm) |
| Max Cutting Height | 31.16 ft in (9497 mm) |
| Max Loading Height | 21.71 ft in (6617 mm) |
| Max Reach Along Ground | 31.18 ft in (9502 mm) |
| Max Digging Depth | 19.9 ft in (6064 mm) |
| Boom/Stick Option (Hex) 5 | two piece boom w/ stick 2500mm |
| Max Vertical Wall Dig Depth | 15.63 ft in (4764 mm) |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 32.32 ft in (9850 mm) |
| Max Loading Height | 22.73 ft in (6926 mm) |
| Shipping Length Of Unit | 31.88 ft in (9717 mm) |
| Max Reach Along Ground | 32.93 ft in (10036 mm) |
| Shipping Height Of Unit | 11.15 ft in (3396 mm) |
| Max Digging Depth | 21.69 ft in (6610 mm) |
| Boom/Stick Option (Hex) 6 | two piece boom w/ stick 3000mm |
| Max Vertical Wall Dig Depth | 17.04 ft in (5192 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 9.54 ft in (2905 mm) |
| Width To Outside Of Tracks | 10.44 ft in (3180 mm) |
| Length Of Track On Ground | 12.57 ft in (3830 mm) |
| Tail Swing Radius | 9.39 ft in (2860 mm) |
| Removal Counterweight Clearance | 3.52 ft in (1070 mm) |
Undercarriage
| Track Gauge | 8.47 ft in (2580 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 6.8 psi (46.89 kPa) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Drawbar Pull | 39022 lb (173.58 kN) |
| Number Of Track Rollers Per Side | 10 |
| Number Of Shoes Per Side | 51 |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SA6D102E |
| Net Power | 158 hp (117.9 kw) |
| Gross Power | 166 hp (123.8 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 358.9 cu in (5.9 L) |
| Aspiration | Turbocharge |
Operational
| Operating Weight | 53374 lb (24210 kg) |
| Fuel Capacity | 89.9 gal (340 L) |
| Cooling System Fluid Capacity | 5.9 gal (22.2 L) |
| Hydraulic System Fluid Capacity | 43.9 gal (166 L) |
| Engine Oil Capacity | 6.4 gal (24 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.5 gal (5.5 L) |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 5049.3 psi (34813.6 kPa) |
| Hydraulic Pump Flow Capacity | 114.2 gal/min (432 L/min) |
Swing Mechanism
| Swing Speed | 12.4 rpm |
Buckets
| Reference Bucket Capacity | 1.5 yd3 (1.1 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 1.8 yd3 (1.3 m3) |
