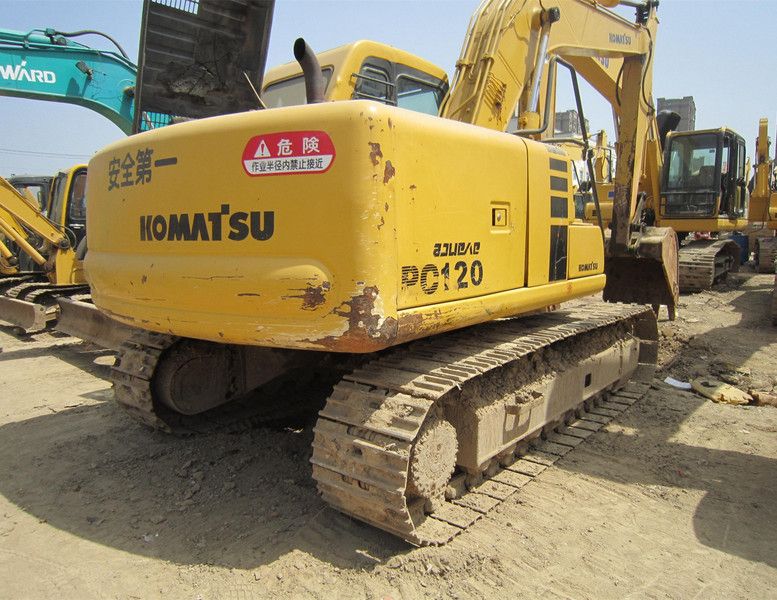

Komatsu PC120-6 EXCEL
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 24.91 ft in (7590 mm) |
| Shipping Height Of Unit | 8.91 ft in (2715 mm) |
| Max Cutting Height | 27.38 ft in (8345 mm) |
| Max Loading Height | 19.38 ft in (5905 mm) |
| Max Reach Along Ground | 25.58 ft in (7795 mm) |
| Max Vertical Wall Digging Depth | 14.83 ft in (4520 mm) |
| Max Digging Depth | 16.79 ft in (5115 mm) |
| Boom/Stick Option (Hex) 1 | Boom 15'1" (4600mm)/Stick 6'11" (2100mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 24.92 ft in (7595 mm) |
| Max Cutting Height | 28.25 ft in (8610 mm) |
| Shipping Height Of Unit | 8.91 ft in (2715 mm) |
| Max Loading Height | 20.25 ft in (6170 mm) |
| Max Reach Along Ground | 26.81 ft in (8170 mm) |
| Max Vertical Wall Digging Depth | 16.21 ft in (4940 mm) |
| Max Digging Depth | 18.12 ft in (5520 mm) |
| Boom/Stick Option (Hex) 2 | Boom 15'1" (4600mm)/Stick 8'2" (2500mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 24.64 ft in (7510 mm) |
| Max Cutting Height | 29.43 ft in (8970 mm) |
| Max Loading Height | 21.45 ft in (6535 mm) |
| Shipping Height Of Unit | 10.09 ft in (3075 mm) |
| Max Reach Along Ground | 28.43 ft in (8665 mm) |
| Max Vertical Wall Digging Depth | 17.59 ft in (5360 mm) |
| Max Digging Depth | 19.74 ft in (6015 mm) |
| Boom/Stick Option (Hex) 3 | Boom 15'1" (4600mm)/Stick 9'10" (3000mm) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Height To Top Of Cab | 8.91 ft in (2715 mm) |
| Width To Outside Of Tracks | 8.08 ft in (2460 mm) |
| Length Of Track On Ground | 9.03 ft in (2750 mm) |
| Tail Swing Radius | 6.99 ft in (2130 mm) |
| Removal Counterweight Clearance | 2.81 ft in (855 mm) |
Undercarriage
| Track Gauge | 6.44 ft in (1960 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Ground Pressure | 5.7 psi (39.31 kPa) |
| Max Travel Speed | 2.12 mph (3.4 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | S4D102E |
| Gross Power | 84.5 hp (63 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 239.3 cu in (4 L) |
Operational
| Operating Weight | 26521.7 lb (12030 kg) |
| Fuel Capacity | 60.8 gal (230 L) |
| Hydraulic System Fluid Capacity | 26.5 gal (100 L) |
| Hydraulic System Relief Valve Pressure | 4620 psi (31853.8 kPa) |
| Hydraulic Pump Flow Capacity | 54.5 gal/min (206 L/min) |
Swing Mechanism
| Swing Speed | 12 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 0.8 yd3 (0.6 m3) |
