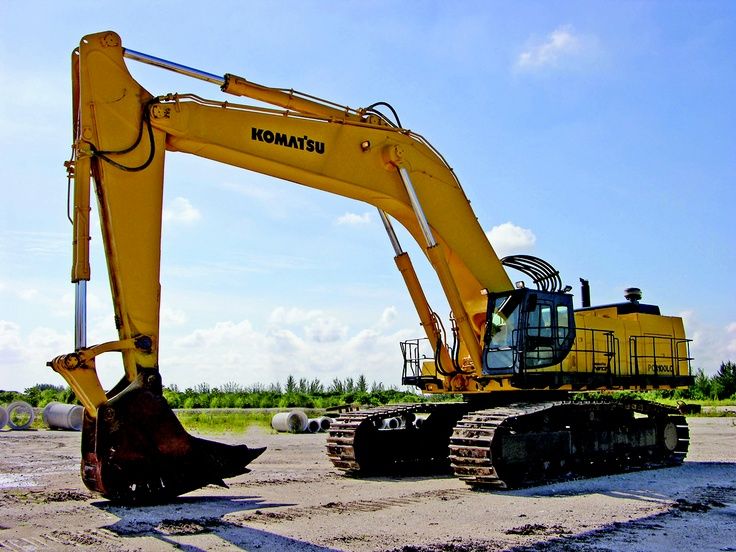

Komatsu PC1100LC-6
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 52.56 ft in (16020 mm) |
| Shipping Height Of Unit | 19.82 ft in (6040 mm) |
| Max Cutting Height | 43.97 ft in (13400 mm) |
| Max Loading Height | 28.48 ft in (8680 mm) |
| Max Reach Along Ground | 49.22 ft in (15000 mm) |
| Max Vertical Wall Digging Depth | 24.97 ft in (7610 mm) |
| Max Digging Depth | 30.68 ft in (9350 mm) |
| Boom/Stick Option (Hex) 1 | Boom 29'10" (9100mm)/Stick 11'2" (3400mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 52.66 ft in (16050 mm) |
| Max Cutting Height | 44.26 ft in (13490 mm) |
| Shipping Height Of Unit | 21.2 ft in (6460 mm) |
| Max Loading Height | 29.53 ft in (9000 mm) |
| Max Reach Along Ground | 52.5 ft in (16000 mm) |
| Max Vertical Wall Digging Depth | 27.86 ft in (8490 mm) |
| Max Digging Depth | 34.26 ft in (10440 mm) |
| Boom/Stick Option (Hex) 2 | Boom 29'10" (9100mm)/Stick 14'9" (4500mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 51.97 ft in (15840 mm) |
| Max Cutting Height | 45.64 ft in (13910 mm) |
| Max Loading Height | 30.98 ft in (9440 mm) |
| Shipping Height Of Unit | 22.94 ft in (6990 mm) |
| Max Reach Along Ground | 56.21 ft in (17130 mm) |
| Max Vertical Wall Digging Depth | 31.11 ft in (9480 mm) |
| Max Digging Depth | 38.03 ft in (11590 mm) |
| Boom/Stick Option (Hex) 3 | Boom 29'10" (9100mm)/Stick 18'8" (5700mm) |
Dimensions
| Ground Clearance | 3.25 ft in (990 mm) |
| Height To Top Of Cab | 12.65 ft in (3855 mm) |
| Width To Outside Of Tracks | 15.1 ft in (4600 mm) |
| Length Of Track On Ground | 19.59 ft in (5970 mm) |
| Tail Swing Radius | 15.98 ft in (4870 mm) |
| Removal Counterweight Clearance | 5.88 ft in (1790 mm) |
Undercarriage
| Track Gauge | 12.8 ft in (3900 mm) |
| Shoe Size | 39.38 in (1000 mm) |
| Ground Pressure | 12.2 psi (84.12 kPa) |
| Max Travel Speed | 1.99 mph (3.2 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D170E |
| Gross Power | 611.6 hp (456 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 1412.7 cu in (23.2 L) |
Operational
| Operating Weight | 244713.2 lb (111000 kg) |
| Fuel Capacity | 359.3 gal (1360 L) |
| Hydraulic System Fluid Capacity | 177 gal (670 L) |
| Hydraulic System Relief Valve Pressure | 4550 psi (31371.2 kPa) |
| Hydraulic Pump Flow Capacity | 419.6 gal/min (1588 L/min) |
Swing Mechanism
| Swing Speed | 5.8 rpm |
Buckets
| Reference Bucket Capacity | 6.6 yd3 (5 m3) |
| Minimum Bucket Capacity | 4.5 yd3 (3.4 m3) |
| Maximum Bucket Capacity | 6.6 yd3 (5 m3) |
