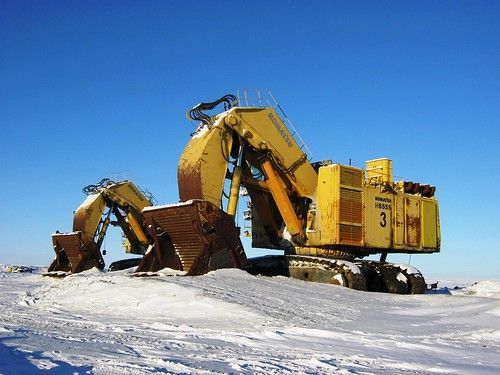

Komatsu H655S
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 76.45 ft in (23300 mm) |
| Shipping Height Of Unit | 41.02 ft in (12500 mm) |
| Max Cutting Height | 63 ft in (19200 mm) |
| Max Loading Height | 42 ft in (12800 mm) |
| Max Reach Along Ground | 67.26 ft in (20500 mm) |
| Max Vertical Wall Digging Depth | 4.93 ft in (1500 mm) |
| Max Digging Depth | 29.53 ft in (9000 mm) |
| Boom/Stick Option (Hex) 1 | Boom 39'4" (12000mm)/Stick 17'7" (5350mm) |
Dimensions
| Ground Clearance | 3.76 ft in (1144 mm) |
| Height To Top Of Cab | 31.12 ft in (9485 mm) |
| Width To Outside Of Tracks | 25.6 ft in (7800 mm) |
| Length Of Track On Ground | 26.25 ft in (8000 mm) |
| Tail Swing Radius | 28.55 ft in (8700 mm) |
| Removal Counterweight Clearance | 11.65 ft in (3550 mm) |
Undercarriage
| Track Gauge | 20.67 ft in (6300 mm) |
| Shoe Size | 59.06 in (1500 mm) |
| Max Travel Speed | 1.31 mph (2.1 km/h) |
| Ground Pressure | 35.4 psi (244.08 kPa) |
Engine
| Number Of Cylinders | 16 |
| Engine Make | 2236 |
| Engine Model | 3516DI-TA x 2 |
| Gross Power | 3730.8 hp (2782 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 8421.3 cu in (138 L) |
Operational
| Operating Weight | 1510166.6 lb (685000 kg) |
| Fuel Capacity | 2905.9 gal (11000 L) |
| Hydraulic System Fluid Capacity | 2205.9 gal (8350 L) |
| Hydraulic System Relief Valve Pressure | 4495 psi (30992 kPa) |
| Hydraulic Pump Flow Capacity | 1902.1 gal/min (7200 L/min) |
Swing Mechanism
| Swing Speed | 3.5 rpm |
