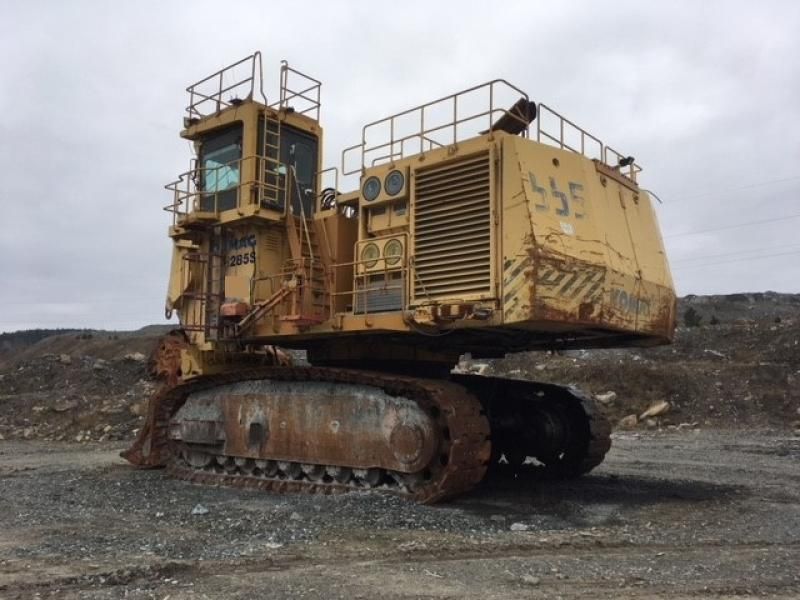

Komatsu H285S
Browse All Komatsu or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 59.06 ft in (18000 mm) |
| Shipping Height Of Unit | 33.47 ft in (10200 mm) |
| Max Cutting Height | 52.83 ft in (16100 mm) |
| Max Loading Height | 34.13 ft in (10400 mm) |
| Max Reach Along Ground | 55.78 ft in (17000 mm) |
| Max Vertical Wall Digging Depth | 6.57 ft in (2000 mm) |
| Max Digging Depth | 28.88 ft in (8800 mm) |
| Boom/Stick Option (Hex) 1 | Boom 30'10" (9400mm)/Stick 14'9" (4500mm) |
Dimensions
| Ground Clearance | 3.15 ft in (958 mm) |
| Height To Top Of Cab | 25.63 ft in (7810 mm) |
| Width To Outside Of Tracks | 21.17 ft in (6450 mm) |
| Length Of Track On Ground | 20.49 ft in (6245 mm) |
| Tail Swing Radius | 21.43 ft in (6530 mm) |
| Removal Counterweight Clearance | 9.8 ft in (2985 mm) |
Undercarriage
| Track Gauge | 17.23 ft in (5250 mm) |
| Shoe Size | 47.25 in (1200 mm) |
| Max Travel Speed | 1.25 mph (2 km/h) |
| Ground Pressure | 28 psi (193.06 kPa) |
Engine
| Number Of Cylinders | 16 |
| Engine Make | 2347 |
| Engine Model | K2000E |
| Gross Power | 1582.5 hp (1180 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 3069.5 cu in (50.3 L) |
Operational
| Operating Weight | 738548.7 lb (335000 kg) |
| Fuel Capacity | 1207.3 gal (4570 L) |
| Hydraulic System Fluid Capacity | 782 gal (2960 L) |
| Hydraulic System Relief Valve Pressure | 4495 psi (30992 kPa) |
| Hydraulic Pump Flow Capacity | 951.1 gal/min (3600 L/min) |
Swing Mechanism
| Swing Speed | 3.3 rpm |
