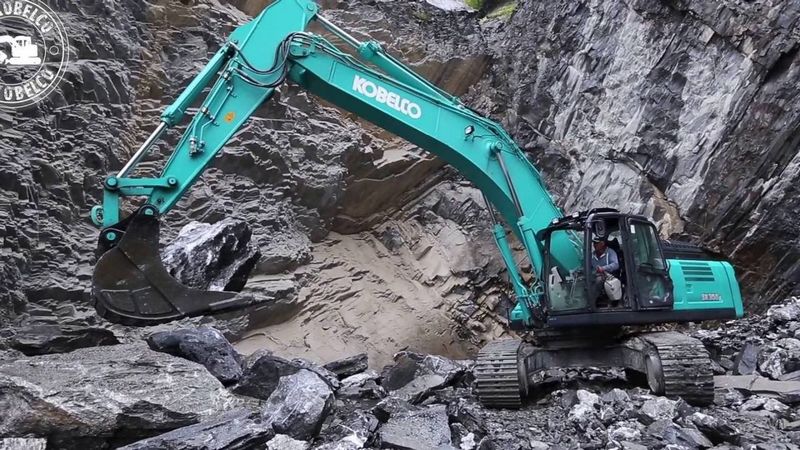

Kobelco SK350LC-10 H&W
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 20.8 ft in (6339.84 mm) |
| Max Digging Depth | 23.9 ft in (7284.72 mm) |
| Boom/Stick Option (Hex) 1 | Boom - 21 ft 4 / Arm - 10 ft 10 in |
| Horizontal Digging Stroke - Ground Level | 19.3 ft in (5882.64 mm) |
| Max Digging Height | 35.9 ft in (10942.32 mm) |
| Max Digging Reach | 36.11 ft in (11006.33 mm) |
| Max Digging Reach On Ground | 36.1 ft in (11003.28 mm) |
| Max Dumping Clearance | 25.2 ft in (7680.96 mm) |
| Min Dumping Clearance | 9.81 ft in (2987.04 mm) |
| Minimum Swing Radius | 169.69 in (4310 mm) |
Boom/Stick Option (Hex) 2
| Max Vertical Wall Digging Depth | 22.9 ft in (6979.92 mm) |
| Max Digging Depth | 26.7 ft in (8138.16 mm) |
| Max Digging Reach On Ground | 38.6 ft in (11765.28 mm) |
| Horizontal Digging Stroke - Ground | 0.08 ft in (23.11 mm) |
| Max Dumping Clearance | 25.9 ft in (7894.32 mm) |
| Minimum Swing Radius | 174.41 in (4430 mm) |
| Min Dumping Clearance | 6.1 ft in (1.86 m) |
| Max. Digging Height | 36.21 ft in (11033.76 mm) |
| Boom/Stick Option (Hex) 2 | Boom - 21 ft 4 in / Arm - 13 ft 7 in |
| Max Digging Reach | 39.3 ft in (11978.64 mm) |
Dimensions
| Ground Clearance | 2.7 ft in (822.96 mm) |
| Height To Top Of Cab | 11.7 ft in (3566.16 mm) |
| Tail Swing Radius | 11.1 ft in (3383.28 mm) |
| Track Gauge | 9.81 ft in (2987.04 mm) |
| Overall Height (To Top Of Boom) | 11.7 ft in (3566.16 mm) |
| Ground Clearance Of Rear End | 4.12 ft in (1252.73 mm) |
| Overall Length | 36.8 ft in (11216.64 mm) |
| Overall Length Of Crawler | 16.5 ft in (5029.2 mm) |
| Shoe Width | 2.3 ft in (700 mm) |
| Overall Width | 3650 mm |
Undercarriage
| Shoe Size | 27.56 in (700 mm) |
| Ground Pressure | 10.6 psi (73.09 kPa) |
| Max Travel Speed | 3.6 mph (5.8 km/h) |
Engine
| Swing Torque | 88500 lb ft (119989.9 Nm) |
| Swing Speed | 10 rpm |
| Engine Model | HINO J08EVV-KSDK |
| Engine Type | Direct injection, water-cooled, 4-cycle, 6-cylinder diesel engine with intercooler turbo-charger (Complies with EPA Tier IV Final) |
| Gross Power | 270 hp (201.4 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 729 lb ft (988.4 Nm) |
| Displacement | 469 cu in (7.7 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Def Tank Capacity | 22 gal (83 L) |
| Gradeability-Laden | 70 % |
| Operating Weight | 87744 lb (39800 kg) |
| Fuel Capacity | 132.9 gal (503 L) |
Performance
| Bucket Digging Force -Sae | 50582.1 lb (225 kN) |
| Bucket Digging Force-Iso | 56202.3 lb (250 kN) |
| Arm Crowding Force- Iso | 40690.5 lb (181 kN) |
| Arm Crowd Force-Sae | 39566.4 lb (176 kN) |
| Drawbar Pull Force | 74187 lb (330 kN) |
Buckets
| Bucket Capacity - Heaped | 1.9 yd3 (1.4 m3) |
Hydraulic System
| Hydraulic System Tank | 64.7 gal (245 L) |
| Maxpumpflow | 77.7 gal/min (294.2 L/min) |
| Relief Valve Setting | 4970 |
| Pump Type | Two variable displacement pumps + one gear pump |
| Swing Motor | Axial piston motor |
