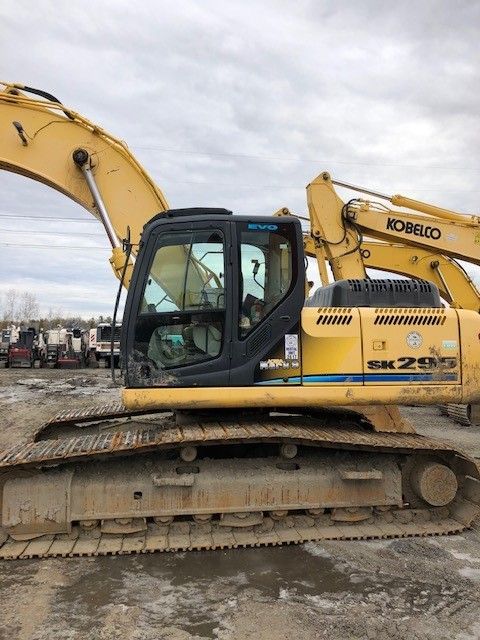

Kobelco SK295LC-8
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 33.47 ft in (10200 mm) |
| Shipping Height Of Unit | 10.5 ft in (3200 mm) |
| Max Cutting Height | 33.27 ft in (10140 mm) |
| Max Loading Height | 23.73 ft in (7230 mm) |
| Max Reach Along Ground | 34.62 ft in (10550 mm) |
| Max Digging Depth | 23.69 ft in (7220 mm) |
| Boom/Stick Option (Hex) 1 | Boom 20'4" (6200mm) / Stick 10'2" (3100mm) |
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Height To Top Of Cab | 10.41 ft in (3170 mm) |
| Width To Outside Of Tracks | 11.13 ft in (3390 mm) |
| Length Of Track On Ground | 13.13 ft in (4000 mm) |
| Tail Swing Radius | 9.75 ft in (2970 mm) |
| Removal Counterweight Clearance | 3.94 ft in (1200 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Max Travel Speed | 3.6 mph (5.8 km/h) |
| Drawbar Pull | 57100 lb (254 kN) |
| Ground Pressure | 6.5 psi (44.82 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2562 |
| Engine Model | F4HE9684B*J1 |
| Net Power | 197 hp (147 kw) |
| Gross Power | 204 hp (152.2 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 673 lb ft (912.5 Nm) |
| Aspiration | Turbocharged |
| Displacement | 410 cu in (6.8 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 66800 lb (30300 kg) |
| Fuel Capacity | 122 gal (461.9 L) |
| Cooling System Fluid Capacity | 6.6 gal (25 L) |
| Hydraulic System Fluid Capacity | 74 gal (280.2 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 4.8 gal (18.2 L) |
| Alternator Supplied Amperage | 70 amps |
| Hydraulic System Relief Valve Pressure | 4970 psi (34267 kPa) |
| Hydraulic Pump Flow Capacity | 130 gal/min (492 L/min) |
Swing Mechanism
| Swing Speed | 11 rpm |
| Swing Torque | 70732 lb ft (95899.8 Nm) |
Buckets
| Reference Bucket Capacity | 1.2 yd3 (0.9 m3) |
| Minimum Bucket Capacity | 0.9 yd3 (0.7 m3) |
| Maximum Bucket Capacity | 1.9 yd3 (1.5 m3) |
