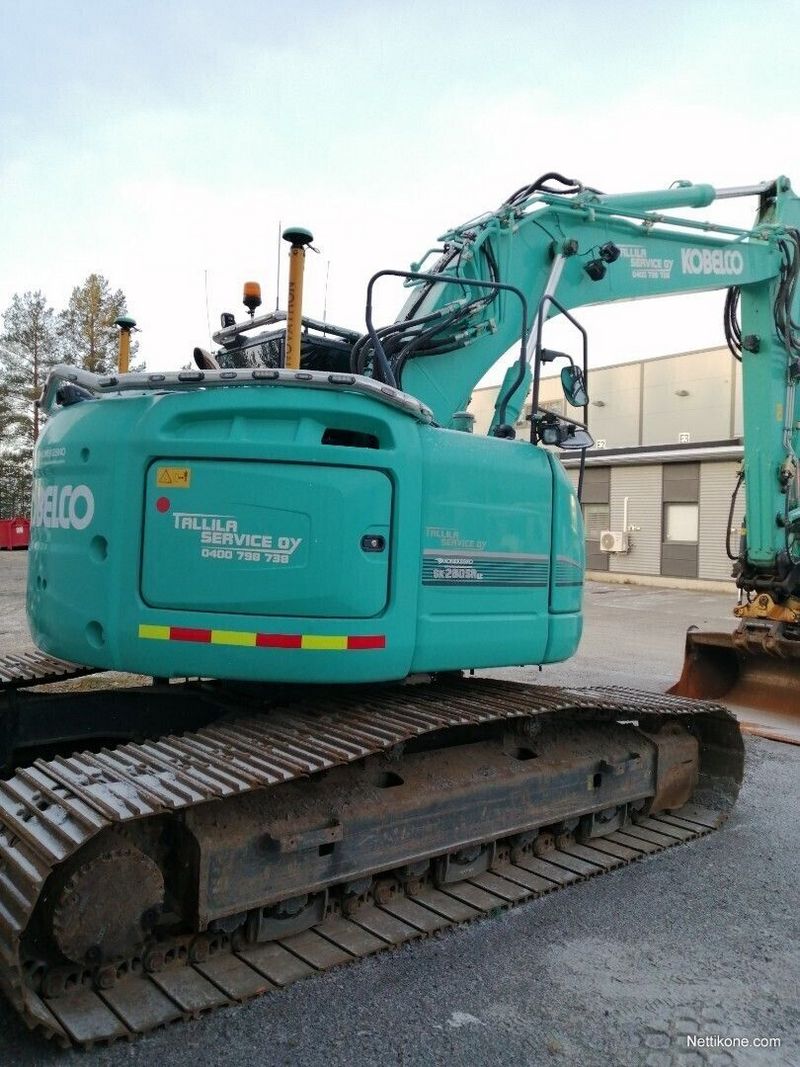

Kobelco SK260SRLC-3
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 35.6 ft in (10850.88 mm) |
| Max Vertical Wall Digging Depth | 18.11 ft in (5516.88 mm) |
| Max Digging Depth | 20.11 ft in (6126.48 mm) |
| Boom/Stick Option (Hex) 1 | Boom length 7 ft 10 in , arm length 2.4 m |
| Minimum Swing Radius | 7.2 in (182.88 mm) |
| Min Dumping Clearance | 9.11 ft in (2776.73 mm) |
| Max Digging Reach | 30.9 ft in (9418.32 mm) |
| Arm Crowd Force - Sae | 26302.65 lb (117 kN) |
| Horizontal Digging Stroke - Ground Level | 13.5 ft in (4114.8 mm) |
| Bucket Digging Force - Sae | 29337.57 lb (130.5 kN) |
| Max Dumping Clearance | 26.1 ft in (7955.28 mm) |
| Max Digging Reach On Ground | 30.1 ft in (9174.48 mm) |
| Arm Crowd Force-Iso | 27201.88 lb (121 kN) |
| Bucket Digging Force - Iso | 32147.68 lb (143 kN) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 36.9 ft in (11247.12 mm) |
| Max Vertical Wall Digging Depth | 19.11 ft in (5824.73 mm) |
| Max Digging Depth | 21.9 ft in (6675.12 mm) |
| Bucket Digging Force - Sae | 29337.57 lb (130.5 kN) |
| Arm Crowd Force-Iso | 22930.52 lb (102 kN) |
| Arm Crowd Force-Sae | 22211.13 lb (98.8 kN) |
| Boom/Stick Option (Hex) 2 | Boom length 9 ft 8 in, arm length 2.94 m |
| Bucket Digging Force - Iso | 32147.68 lb (143 kN) |
| Horizontal Digging Stroke - Ground | 17.3 ft in (5273.04 mm) |
| Max Digging Reach | 32.4 ft in (9875.52 mm) |
| Max Digging Reach On Ground | 31.9 ft in (9723.13 mm) |
| Max Dumping Clearance | 27.4 ft in (8351.52 mm) |
| Min Dumping Clearance | 10.4 ft in (3.17 m) |
| Minimum Swing Radius | 6.4 in (162.56 mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 37.11 ft in (11311.13 mm) |
| Max Reach Along Ground | 33 ft in (10058.4 mm) |
| Max Vertical Wall Digging Depth | 22.1 ft in (6736.08 mm) |
| Max Digging Depth | 23.1 ft in (7040.88 mm) |
| Arm Crowd Force-Sae | 20907.23 lb (93 kN) |
| Arm Crowd Force-Iso | 21491.74 lb (95.6 kN) |
| Minimum Swing Radius | 7.9 in (200.66 mm) |
| Boom/Stick Option (Hex) 3 | Boom length 10 ft 11 in , arm length 3.33 m |
| Max Digging Reach | 33.71 ft in (10271.76 mm) |
| Horizontal Digging Stroke - Ground | 18.7 ft in (5699.76 mm) |
| Max Dumping Clearance | 28.5 ft in (8686.8 mm) |
| Bucket Digging Force - Iso | 32147.68 lb (143 kN) |
| Min Dumping Clearance | 9.5 ft in (2895.6 mm) |
| Bucket Digging Force - Sae | 29337.57 lb (130.5 kN) |
Dimensions
| Ground Clearance | 17.9 ft in (5455.92 mm) |
| Height To Top Of Cab | 10.5 ft in (3200.4 mm) |
| Tail Swing Radius | 6.2 ft in (1889.76 mm) |
| Ground Pressure | 5.8 psi (39.99 kPa) |
| Overall Length Of Crawler | 15.3 ft in (4663.44 mm) |
| Overall Width -Upper Structure | 9.1 ft in (2773.68 mm) |
| Gradeability | 70 % |
| Overall Width | 11.1 ft in (3383.28 mm) |
| Shoe Width | 31.5 ft in (9601.21 mm) |
| Overall Height (To Top Of Boom) | 10.4 ft in (3169.92 mm) |
| Overall Length | 29.9 ft in (9113.52 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590.81 mm) |
| Drawbar Pull | 54600 lb (242.88 kN) |
| Number Of Shoes Per Side | 51 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Type | Direct injection |
| Net Power | 157 hp (117.1 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 472.1 lb ft (640 Nm) |
| Displacement | 312.7 cu in (5.2 L) |
| Bore | 4.5 in (112 mm) |
| Stroke | 5.2 in (130 mm) |
Operational
| Operating Weight | 130734.2 lb (59300 kg) |
| Fuel Capacity | 87.2 gal (330 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Engine Oil Capacity | 5.5 gal (20.5 L) |
| Hydraulic System Relief Valve Pressure | 4970 psi (34267 kPa) |
Swing Mechanism
| Swing Motor | Axial piston motor |
| Swing Torque | 63.2 lb ft (85.6 Nm) |
| Swing Speed | 10.3 rpm |
Bucket
| Bucket Weight | 1146.5 lb (520 kg) |
Hydraulic System
| Power Boost | 5480 psi (37783.3 kPa) |
| Max. Discharge Flow | 116.3 gal/min (440 L/min) |
| Travel Circuit | 4970 psi (34267 kPa) |
| Swing Circuit | 3920 psi (27027.5 kPa) |
| Pump Type | Two variable displacement pumps + 1 gear pump |
Bucket
| Bucket Capacity - Heaped | 0.7 yd3 (0.6 m3) |
| Bucket Capacity - Struck | 0.6 yd3 (0.4 m3) |
