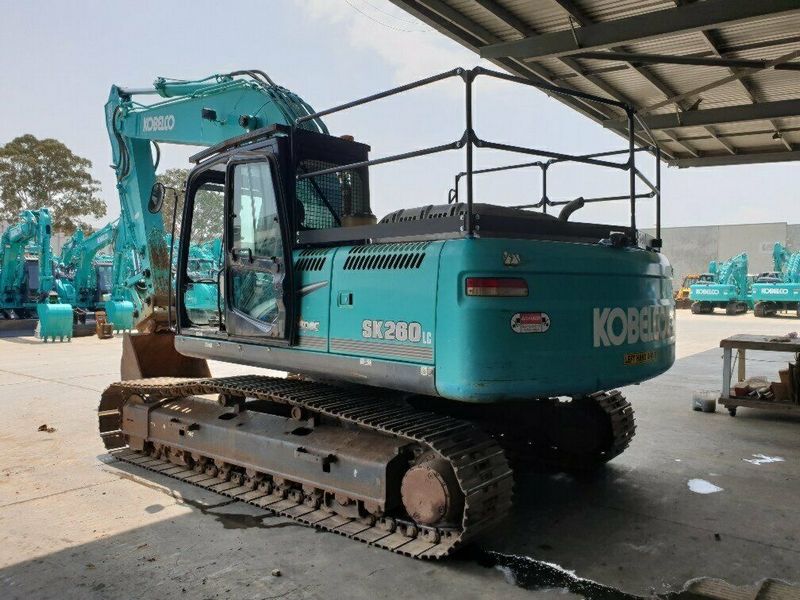

Kobelco SK260LC-8
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 33.21 ft in (10120 mm) |
| Shipping Height Of Unit | 10.5 ft in (3200 mm) |
| Max Loading Height | 22.58 ft in (6880 mm) |
| Max Reach Along Ground | 33.27 ft in (10140 mm) |
| Max Vertical Wall Digging Depth | 20.18 ft in (6150 mm) |
| Max Digging Depth | 22.97 ft in (7000 mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Width To Outside Of Tracks | 10.8 ft in (3290 mm) |
| Length Of Track On Ground | 12.64 ft in (3850 mm) |
| Tail Swing Radius | 9.91 ft in (3020 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.61 mph (5.8 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2511 |
| Engine Model | J05E |
| Gross Power | 175.7 hp (131 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 311.3 cu in (5.1 L) |
Operational
| Operating Weight | 55556.5 lb (25200 kg) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 130 gal/min (492 L/min) |
Buckets
| Reference Bucket Capacity | 1.6 yd3 (1.2 m3) |
