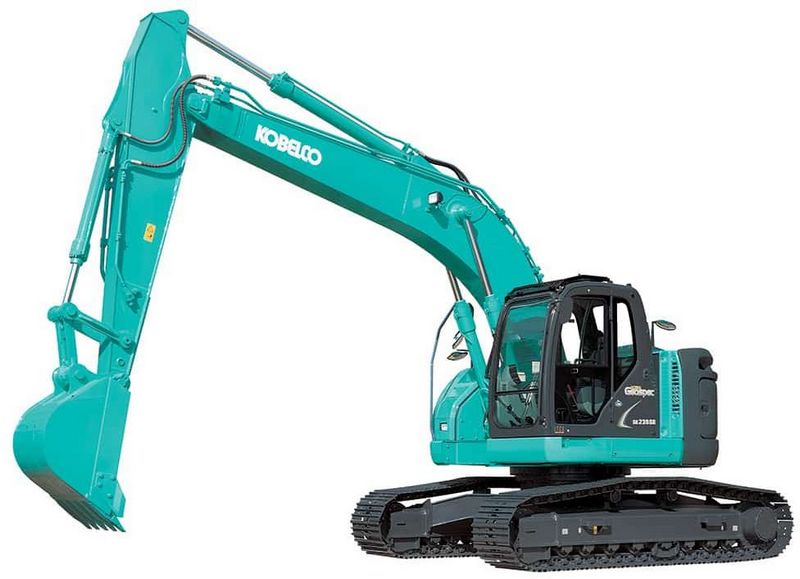

Kobelco SK235SR-2
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 28.84 ft in (8790 mm) |
| Shipping Height Of Unit | 10.37 ft in (3160 mm) |
| Max Loading Height | 27.33 ft in (8330 mm) |
| Max Reach Along Ground | 31.76 ft in (9680 mm) |
| Max Vertical Wall Digging Depth | 19.85 ft in (6050 mm) |
| Max Digging Depth | 21.82 ft in (6650 mm) |
Dimensions
| Ground Clearance | 1.5 ft in (455 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 11.39 ft in (3470 mm) |
| Tail Swing Radius | 5.68 ft in (1730 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2511 |
| Engine Model | JO5E |
| Gross Power | 152.9 hp (114 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 311.3 cu in (5.1 L) |
Operational
| Operating Weight | 53131.5 lb (24100 kg) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 116.3 gal/min (440 L/min) |
Buckets
| Reference Bucket Capacity | 1.2 yd3 (0.9 m3) |
