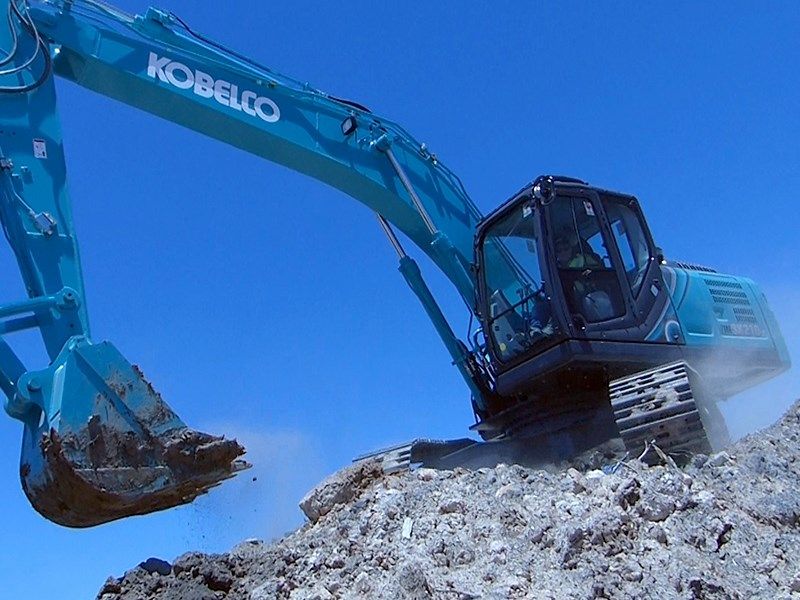

Kobelco SK210LC-10
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Vertical Wall Digging Depth | 20 ft in (6096 mm) |
| Max Digging Depth | 22 ft in (6705.6 mm) |
| Bucket Digging Force - Iso | 32147.68 lb (143 kN) |
| Bucket Digging Force - Sae | 29225.17 lb (130 kN) |
| Arm Crowd Force - Sae | 22211.13 lb (98.8 kN) |
| Boom/Stick Option (Hex) 1 | Boom - 18.6 ft in , 5.65 m / Standard Arm - 9.8 ft in 2.94 m |
| Max Digging Height | 31.11 ft in (9482.33 mm) |
| Max Digging Reach | 32.6 ft in (9936.48 mm) |
| Max Digging Reach On Ground | 31.11 ft in (9482.33 mm) |
| Max Dumping Clearance | 22.8 ft in (6949.44 mm) |
| Min Dumping Clearance | 8 ft in (2438.4 mm) |
Boom/Stick Option (Hex) 2
| Max Vertical Wall Digging Depth | 21.3 ft in (6492.24 mm) |
| Max Digging Depth | 23.1 ft in (7040.88 mm) |
| Max Dumping Clearance | 22.1 ft in (6736.08 mm) |
| Max Digging Reach On Ground | 33.4 ft in (10180.32 mm) |
| Boom/Stick Option (Hex) 2 | Boom- 18.6 ft in , 5.65 m / Long Arm - 11.6 ft in , 3.5 m |
| Max Digging Reach | 33.11 ft in (10091.93 mm) |
| Min Dumping Clearance | 6.2 ft in (1.89 m) |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Tail Swing Radius | 9.55 ft in (2910 mm) |
| Track Gauge | 7.85 ft in (2390 mm) |
| Overall Width -Upper Structure | 9.36 ft in (2850 mm) |
| Shoe Width | 2.96 ft in (900 mm) |
| Overall Height (To Top Of Boom) | 9.78 ft in (2980 mm) |
| Overall Height (To Top Of Cab) | 10.04 ft in (3060 mm) |
| Overall Length | 377.96 in (9600 mm) |
| Overall Length Of Crawler | 14.6 ft in (4450 mm) |
| Overall Width | 10.44 ft in (3180 mm) |
Undercarriage
| Max Travel Speed | 3.7 mph (5.96 km/h) |
Engine
| Emission Tier Level | Tier IV final |
| Number Of Cylinders | 4 |
| Engine Model | HINO J05EUM-KSSC |
| Engine Type | Direct injection |
| Net Power | 159.6 hp (119 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 472.1 lb ft (640 Nm) |
| Displacement | 312.7 cu in (5.2 L) |
| Torque Measured @ | 1600 rpm |
| Bore | 4.5 in (112 mm) |
| Stroke | 5.2 in (130 mm) |
Capacities
| Travel Reduction | 2.9 gal (10.6 L) |
| Hydraulic Oil Tank | 37 gal (140 L) |
| Fuel Tank | 84.6 gal (320 L) |
| Diesel Exhaust Fluid (Def) Tank | 22 gal (83 L) |
| Cooling System | 5.1 gal (19 L) |
| Hydraulic System | 64.5 gal (244 L) |
| Engine Oil | 5.5 gal (20.5 L) |
Swing Mechanism
| Swing Radius | 9.6 ft in (2910 mm) |
| Swing Motor | Axial piston motor |
| Swing Torque | 52.7 lb ft (71.5 Nm) |
| Swing Speed | 12.7 rpm |
Weights
| Operating Weight | 47840.4 lb (21700 kg) |
Hydraulic System
| Power Boost | 5480 psi (37783.3 kPa) |
| Max. Discharge Flow | 116.3 gal/min (440 L/min) |
| Travel Circuit | 4970 psi (34267 kPa) |
| Swing Circuit | 4210 psi (29027 kPa) |
| Boom Cylinder | 4.8 in (120 mm) |
| Bucket Cylinder | 0.4 ft in (120 mm) |
| Control Valve | 8-spool |
| Pump Type | Two variable displacement pumps + One gear pump |
