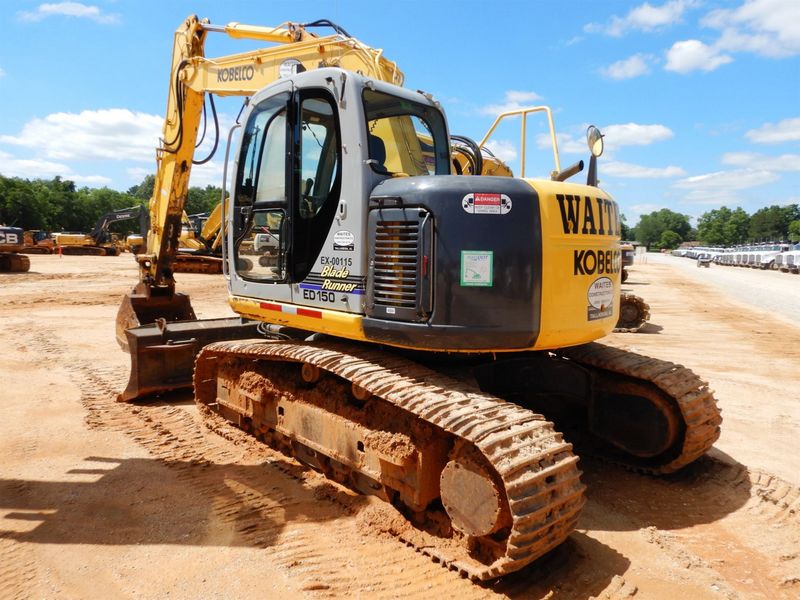

Kobelco ED150
Browse All Kobelco or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 28.06 ft in (8550 mm) |
| Shipping Height Of Unit | 9.78 ft in (2980 mm) |
| Max Cutting Height | 29.6 ft in (9020 mm) |
| Max Loading Height | 21.66 ft in (6600 mm) |
| Max Reach Along Ground | 28.29 ft in (8620 mm) |
| Max Vertical Wall Digging Depth | 16.7 ft in (5090 mm) |
| Max Digging Depth | 19.2 ft in (5850 mm) |
| Boom/Stick Option (Hex) 1 | stick 9'8" 2950mm |
Dimensions
| Ground Clearance | 1.73 ft in (525 mm) |
| Height To Top Of Cab | 9.52 ft in (2900 mm) |
| Width To Outside Of Tracks | 8.5 ft in (2590 mm) |
| Length Of Track On Ground | 9.19 ft in (2800 mm) |
| Tail Swing Radius | 4.7 ft in (1430 mm) |
| Removal Counterweight Clearance | 3.52 ft in (1070 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 6.2 psi (42.75 kPa) |
| Drawbar Pull | 32597.3 lb (145 kN) |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | A-4BG1T |
| Gross Power | 94 hp (70.1 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 234.5 lb ft (318 Nm) |
| Aspiration | Turbocharged diesel |
| Displacement | 264 cu in (4.4 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 35720 lb (16202.4 kg) |
| Fuel Capacity | 44.4 gal (168 L) |
| Cooling System Fluid Capacity | 4.8 gal (18 L) |
| Hydraulic System Fluid Capacity | 37 gal (140 L) |
| Engine Oil Capacity | 3.5 gal (13 L) |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 82.6 gal/min (312.7 L/min) |
Swing Mechanism
| Swing Speed | 11.7 rpm |
| Swing Torque | 27762 lb ft (37640.3 Nm) |
Buckets
| Reference Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Minimum Bucket Capacity | 0.3 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 0.9 yd3 (0.7 m3) |
