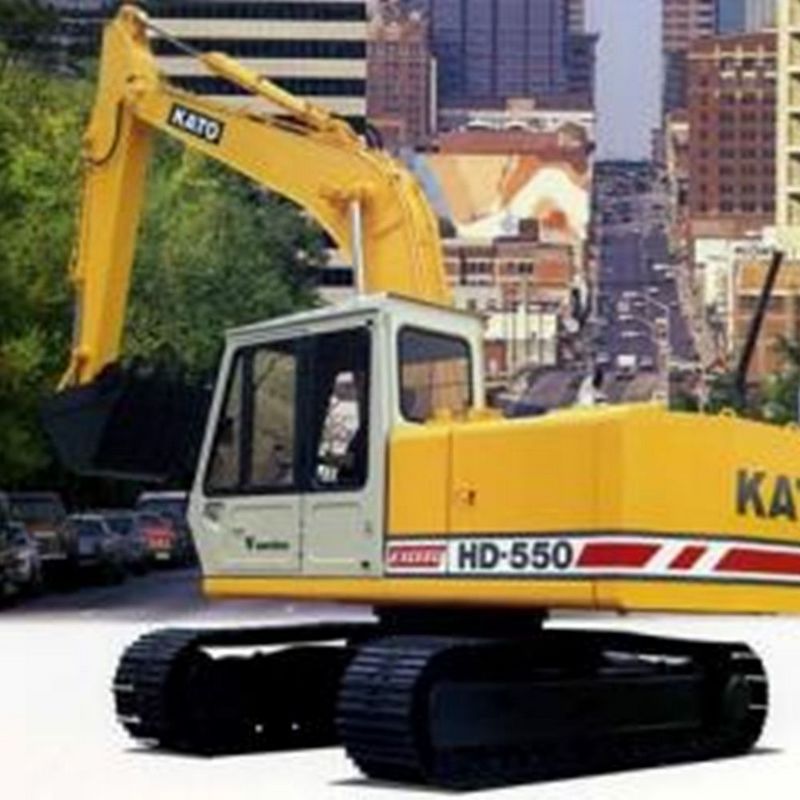

Kato HD550VII
Browse All Kato or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 27.76 ft in (8460 mm) |
| Max Loading Height | 19.39 ft in (5910 mm) |
| Max Reach Along Ground | 27.1 ft in (8260 mm) |
| Max Vertical Wall Digging Depth | 15.03 ft in (4580 mm) |
| Max Digging Depth | 18.08 ft in (5510 mm) |
| Boom/Stick Option (Hex) 1 | Short arm 2020mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 28.58 ft in (8710 mm) |
| Max Loading Height | 20.15 ft in (6140 mm) |
| Max Reach Along Ground | 28.71 ft in (8750 mm) |
| Max Vertical Wall Digging Depth | 17.23 ft in (5250 mm) |
| Max Digging Depth | 19.89 ft in (6060 mm) |
| Boom/Stick Option (Hex) 2 | Standard arm 2570mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 29.24 ft in (8910 mm) |
| Max Loading Height | 20.81 ft in (6340 mm) |
| Max Reach Along Ground | 30.22 ft in (9210 mm) |
| Max Vertical Wall Digging Depth | 18.71 ft in (5700 mm) |
| Max Digging Depth | 21.49 ft in (6550 mm) |
| Boom/Stick Option (Hex) 3 | Long arm 3070mm |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Height To Top Of Cab | 9.09 ft in (2770 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 9.39 ft in (2860 mm) |
| Tail Swing Radius | 8.11 ft in (2470 mm) |
| Removal Counterweight Clearance | 3.15 ft in (960 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Number Of Track Rollers Per Side | 7 |
| Drawbar Pull | 33700 lb (33700 -) |
| Ground Pressure | 6.5 psi (44.82 kPa) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Shoes Per Side | 45 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | C 6D31T |
| Gross Power | 99.3 hp (74 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 281 lb ft (381 Nm) |
| Displacement | 302 cu in (5 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 31967.1 lb (14500 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 5.6 gal (21 L) |
| Hydraulic System Fluid Capacity | 59.5 gal (225 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 4.5 gal (17 L) |
| Swing Drive Fluid Capacity | 1.4 gal (5 L) |
| Alternator Supplied Amperage | 30 amps |
| Hydraulic System Relief Valve Pressure | 4760 psi (32819.1 kPa) |
| Hydraulic Pump Flow Capacity | 90.9 gal/min (344 L/min) |
Swing Mechanism
| Swing Speed | 13.4 rpm |
Buckets
| Reference Bucket Capacity | 0.9 yd3 (0.7 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
