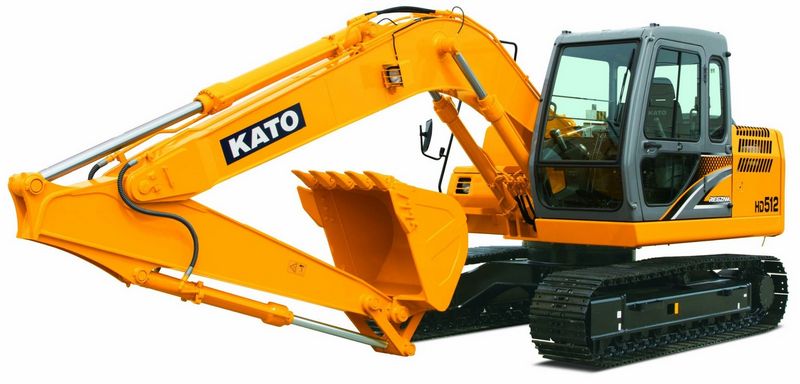

Kato HD512
Browse All Kato or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 24.81 ft in (7560 mm) |
| Shipping Height Of Unit | 9.09 ft in (2770 mm) |
| Max Cutting Height | 27.5 ft in (8380 mm) |
| Max Loading Height | 8.14 ft in (2480 mm) |
| Max Reach Along Ground | 25.56 ft in (7790 mm) |
| Max Vertical Wall Digging Depth | 15.33 ft in (4670 mm) |
| Max Digging Depth | 17.13 ft in (5220 mm) |
| Boom/Stick Option (Hex) 1 | Boom 4650mm (15'' 3') / Stick 2100mm (6' 11'') |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 24.81 ft in (7560 mm) |
| Max Cutting Height | 28.25 ft in (8610 mm) |
| Shipping Height Of Unit | 9.09 ft in (2770 mm) |
| Max Loading Height | 6.83 ft in (2080 mm) |
| Max Reach Along Ground | 26.78 ft in (8160 mm) |
| Max Vertical Wall Digging Depth | 16.64 ft in (5070 mm) |
| Max Digging Depth | 18.44 ft in (5620 mm) |
| Boom/Stick Option (Hex) 2 | Boom 4650mm (15'' 3') / Stick 2500mm (8' 2'') |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 24.81 ft in (7560 mm) |
| Max Cutting Height | 29.11 ft in (8870 mm) |
| Max Loading Height | 21.4 ft in (6520 mm) |
| Shipping Height Of Unit | 9.09 ft in (2770 mm) |
| Max Reach Along Ground | 28.32 ft in (8630 mm) |
| Max Vertical Wall Digging Depth | 17.95 ft in (5470 mm) |
| Max Digging Depth | 20.12 ft in (6130 mm) |
| Boom/Stick Option (Hex) 3 | Boom 4650mm (15'' 3') / Stick 3000mm (9' 10'') |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 8.9 ft in (2710 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 9.42 ft in (2870 mm) |
| Tail Swing Radius | 6.96 ft in (2120 mm) |
| Removal Counterweight Clearance | 2.89 ft in (880 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Ground Pressure | 5.4 psi (37.24 kPa) |
| Number Of Shoes Per Side | 44 |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Track Rollers Per Side | 7 |
| Drawbar Pull | 20502.58 lb (91.2 kN) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2251 |
| Engine Model | 4D31-T |
| Net Power | 87 hp (64.9 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 216.9 lb ft (294 Nm) |
| Displacement | 201.3 cu in (3.3 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1700 rpm |
Operational
| Operating Weight | 26200 lb (11884.2 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 4.5 gal (17 L) |
| Hydraulic System Fluid Capacity | 41 gal (155 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 4.4 gal (16.5 L) |
| Swing Drive Fluid Capacity | 0.7 gal (2.5 L) |
| Alternator Supplied Amperage | 25 amps |
| Hydraulic System Relief Valve Pressure | 4270 psi (29440.6 kPa) |
| Hydraulic Pump Flow Capacity | 37 gal/min (140 L/min) |
Swing Mechanism
| Swing Speed | 12.5 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 0.8 yd3 (0.6 m3) |
