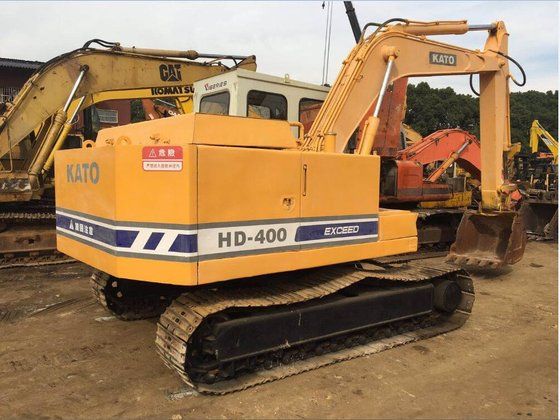

Kato HD400VII
Browse All Kato or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 25.96 ft in (7910 mm) |
| Max Loading Height | 18.21 ft in (5550 mm) |
| Max Reach Along Ground | 23.89 ft in (7280 mm) |
| Max Vertical Wall Digging Depth | 13.85 ft in (4220 mm) |
| Max Digging Depth | 15.65 ft in (4770 mm) |
| Boom/Stick Option (Hex) 1 | Stick 1950mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 26.51 ft in (8080 mm) |
| Max Loading Height | 18.77 ft in (5720 mm) |
| Max Reach Along Ground | 24.84 ft in (7570 mm) |
| Max Vertical Wall Digging Depth | 14.83 ft in (4520 mm) |
| Max Digging Depth | 16.64 ft in (5070 mm) |
| Boom/Stick Option (Hex) 2 | Stick 2250mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 26.51 ft in (8080 mm) |
| Max Loading Height | 18.97 ft in (5780 mm) |
| Max Reach Along Ground | 26.22 ft in (7990 mm) |
| Max Vertical Wall Digging Depth | 15 ft in (4570 mm) |
| Max Digging Depth | 18.44 ft in (5620 mm) |
| Boom/Stick Option (Hex) 3 | Stick 2800mm |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 8.83 ft in (2690 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 8.6 ft in (2620 mm) |
| Tail Swing Radius | 6.96 ft in (2120 mm) |
| Removal Counterweight Clearance | 2.89 ft in (880 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Number Of Track Rollers Per Side | 6 |
| Drawbar Pull | 19400 lb (19400 -) |
| Ground Pressure | 5.12 psi (35.31 kPa) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Shoes Per Side | 41 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2251 |
| Engine Model | C 4D31T |
| Gross Power | 81.9 hp (61 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 220 lb ft (298.3 Nm) |
| Displacement | 201.3 cu in (3.3 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1700 rpm |
Operational
| Operating Weight | 23148.6 lb (10500 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 4.5 gal (17 L) |
| Hydraulic System Fluid Capacity | 37 gal (140 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 3.2 gal (12 L) |
| Swing Drive Fluid Capacity | 0.6 gal (2.2 L) |
| Alternator Supplied Amperage | 25 amps |
| Hydraulic System Relief Valve Pressure | 4760 psi (32819.1 kPa) |
| Hydraulic Pump Flow Capacity | 60.8 gal/min (230 L/min) |
Swing Mechanism
| Swing Speed | 12.1 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 0.8 yd3 (0.6 m3) |
