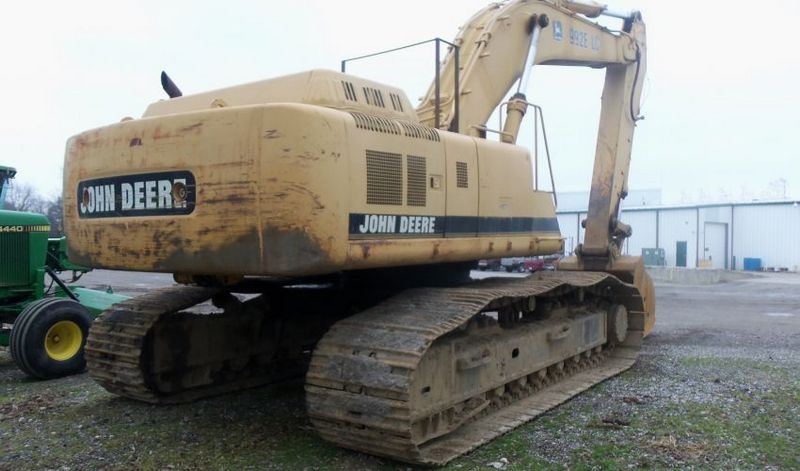

John Deere 992E LC
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 39 ft in (11887.2 mm) |
| Shipping Height Of Unit | 11.83 ft in (3605.79 mm) |
| Max Cutting Height | 33.7 ft in (10270 mm) |
| Max Loading Height | 23.1 ft in (7040 mm) |
| Max Reach Along Ground | 36.62 ft in (11160 mm) |
| Max Vertical Wall Digging Depth | 17.52 ft in (5340 mm) |
| Max Digging Depth | 23.82 ft in (7260 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 9ft.6in. (2.9m ) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 38.67 ft in (11786.62 mm) |
| Max Cutting Height | 36.68 ft in (11180 mm) |
| Shipping Height Of Unit | 11.42 ft in (3480.82 mm) |
| Max Loading Height | 25.53 ft in (7780 mm) |
| Max Reach Along Ground | 40.26 ft in (12270 mm) |
| Max Vertical Wall Digging Depth | 23.1 ft in (7040 mm) |
| Max Digging Depth | 27.1 ft in (8260 mm) |
| Boom/Stick Option (Hex) 2 | Arm Length 12ft 10in. (3.9m ) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 38.42 ft in (11710.42 mm) |
| Max Cutting Height | 38.88 ft in (11850 mm) |
| Max Loading Height | 28.78 ft in (8770 mm) |
| Shipping Height Of Unit | 15.25 ft in (4648.2 mm) |
| Max Reach Along Ground | 43.25 ft in (13180 mm) |
| Max Vertical Wall Digging Depth | 27.73 ft in (8450 mm) |
| Max Digging Depth | 29.89 ft in (9110 mm) |
| Boom/Stick Option (Hex) 3 | Arm Length 16ft.1in. (4.9m ) |
Dimensions
| Ground Clearance | 2.42 ft in (735 mm) |
| Height To Top Of Cab | 10.54 ft in (3210 mm) |
| Width To Outside Of Tracks | 11.95 ft in (3640 mm) |
| Length Of Track On Ground | 14.67 ft in (4470 mm) |
| Tail Swing Radius | 11.39 ft in (3470 mm) |
| Removal Counterweight Clearance | 4.43 ft in (1350 mm) |
Undercarriage
| Track Gauge | 9.5 ft in (2895.6 mm) |
| Shoe Size | 30 in (750 mm) |
| Max Travel Speed | 3.4 mph (5.5 km/h) |
| Ground Pressure | 8.69 psi (59.9 kPa) |
| Number Of Shoes Per Side | 53 |
| Number Of Carrier Rollers Per Side | 3 |
| Number Of Track Rollers Per Side | 9 |
| Drawbar Pull | 79590 lb (354 kN) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6101A |
| Gross Power | 296 hp (221 kw) |
| Net Power | 285 hp (213 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 955 lb ft (1295 Nm) |
| Displacement | 619 cu in (10.2 L) |
| Aspiration | Turbocharged and aftercooled |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 97600 lb (44270 kg) |
| Fuel Capacity | 156 gal (590 L) |
| Cooling System Fluid Capacity | 10 gal (38 L) |
| Hydraulic System Fluid Capacity | 137 gal (520 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 9 gal (34 L) |
| Swing Drive Fluid Capacity | 1.5 gal (5.7 L) |
| Alternator Supplied Amperage | 45 amps |
| Hydraulic System Relief Valve Pressure | 4270 psi (29440 kPa) |
| Hydraulic Pump Flow Capacity | 95 gal/min (360 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 2.5 yd3 (1.9 m3) |
| Minimum Bucket Capacity | 1.6 yd3 (1.2 m3) |
| Maximum Bucket Capacity | 4.2 yd3 (3.2 m3) |
