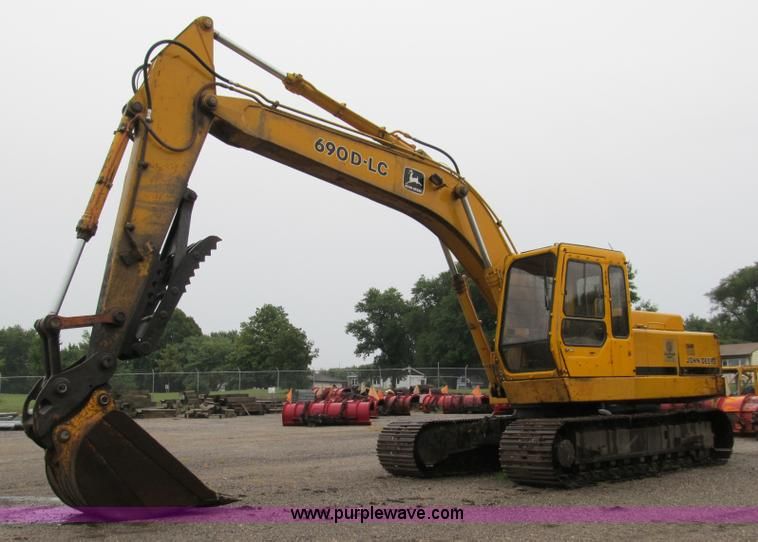

John Deere 690D
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.58 ft in (9620 mm) |
| Shipping Height Of Unit | 9.58 ft in (2920 mm) |
| Max Cutting Height | 29.8 ft in (9040 mm) |
| Max Loading Height | 20.25 ft in (6170 mm) |
| Max Reach Along Ground | 30 ft in (9140 mm) |
| Max Vertical Wall Digging Depth | 15.83 ft in (4830 mm) |
| Max Digging Depth | 19.5 ft in (5940 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 7ft.3in.(2.20m) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 31.17 ft in (9510 mm) |
| Max Cutting Height | 31.83 ft in (9470 mm) |
| Shipping Height Of Unit | 9.58 ft in (2920 mm) |
| Max Loading Height | 21.5 ft in (6550 mm) |
| Max Reach Along Ground | 32.3 ft in (9830 mm) |
| Max Vertical Wall Digging Depth | 17.08 ft in (5210 mm) |
| Max Digging Depth | 21.83 ft in (6650 mm) |
| Boom/Stick Option (Hex) 2 | Arm Length 9ft 6in.(2.90m) |
Dimensions
| Ground Clearance | 1.33 ft in (403 mm) |
| Height To Top Of Cab | 9.58 ft in (2092 mm) |
| Width To Outside Of Tracks | 7.42 ft in (2280 mm) |
| Length Of Track On Ground | 9.92 ft in (3020 mm) |
| Tail Swing Radius | 8.92 ft in (2720 mm) |
| Removal Counterweight Clearance | 2.92 ft in (889 mm) |
Undercarriage
| Track Gauge | 5.92 ft in (1820 mm) |
| Shoe Size | 24 in (600 mm) |
| Ground Pressure | 6.5 psi (44.6 kPa) |
| Number Of Shoes Per Side | 47 |
| Drawbar Pull | 36000 lb (160 kN) |
| Max Travel Speed | 2.4 mph (3.86 km/h) |
| Number Of Track Rollers Per Side | 9 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6414T |
| Gross Power | 132 hp (98 kw) |
| Net Power | 125 hp (93 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 420 lb ft (569 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 39730 lb (18025 kg) |
| Fuel Capacity | 70 gal (265 L) |
| Cooling System Fluid Capacity | 21 gal (29 L) |
| Hydraulic System Fluid Capacity | 96 gal (363 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 20 gal (19 L) |
| Swing Drive Fluid Capacity | 6 gal (5.7 L) |
| Alternator Supplied Amperage | 42 amps |
| Hydraulic System Relief Valve Pressure | 4060 psi (9.5 kPa) |
| Hydraulic Pump Flow Capacity | 50 gal/min (189 L/min) |
Swing Mechanism
| Swing Speed | 13 rpm |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 1.4 yd3 (1.1 m3) |
