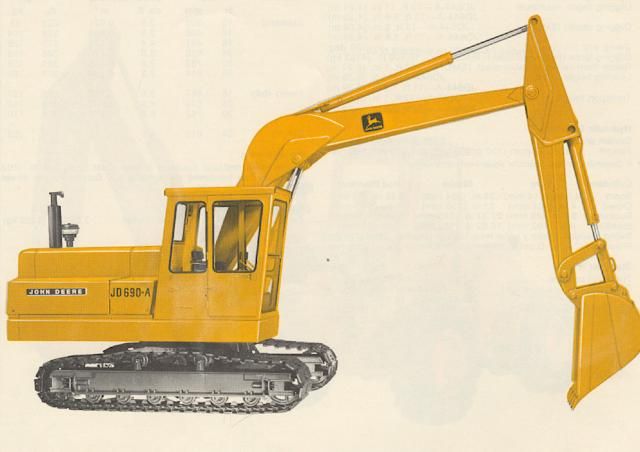

John Deere 690A
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 29.5 ft in (8990 mm) |
| Shipping Height Of Unit | 10.83 ft in (3300 mm) |
| Max Cutting Height | 22 ft in (6705 mm) |
| Max Loading Height | 15 ft in (4572 mm) |
| Max Reach Along Ground | 30 ft in (9144 mm) |
| Max Digging Depth | 21 ft in (6400 mm) |
| Boom/Stick Option (Hex) 1 | Standard |
Dimensions
| Ground Clearance | 1.17 ft in (356 mm) |
| Height To Top Of Cab | 9.75 ft in (2970 mm) |
| Width To Outside Of Tracks | 7.92 ft in (2410 mm) |
| Tail Swing Radius | 8.42 ft in (2570 mm) |
| Removal Counterweight Clearance | 3.09 ft in (940 mm) |
Undercarriage
| Shoe Size | 24 in (610 mm) |
| Ground Pressure | 6.1 psi (6.1 -) |
| Max Travel Speed | 1.2 mph (1.9 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Gross Power | 141 hp (143 kw) |
| Net Power | 131 hp (133 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 345 lb ft (47.4 Nm) |
| Displacement | 404 cu in (6620 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 36100 lb (16375 kg) |
| Fuel Capacity | 60 gal (227.1 L) |
| Cooling System Fluid Capacity | 11.3 gal (42.6 L) |
| Hydraulic System Fluid Capacity | 80 gal (302.8 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 15 gal (14.2 L) |
| Swing Drive Fluid Capacity | 7.5 gal (7.1 L) |
| Hydraulic System Relief Valve Pressure | 2500 psi (175.7 kPa) |
| Hydraulic Pump Flow Capacity | 84 gal/min (318 L/min) |
Swing Mechanism
| Swing Speed | 7 rpm |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 0.9 yd3 (0.7 m3) |
