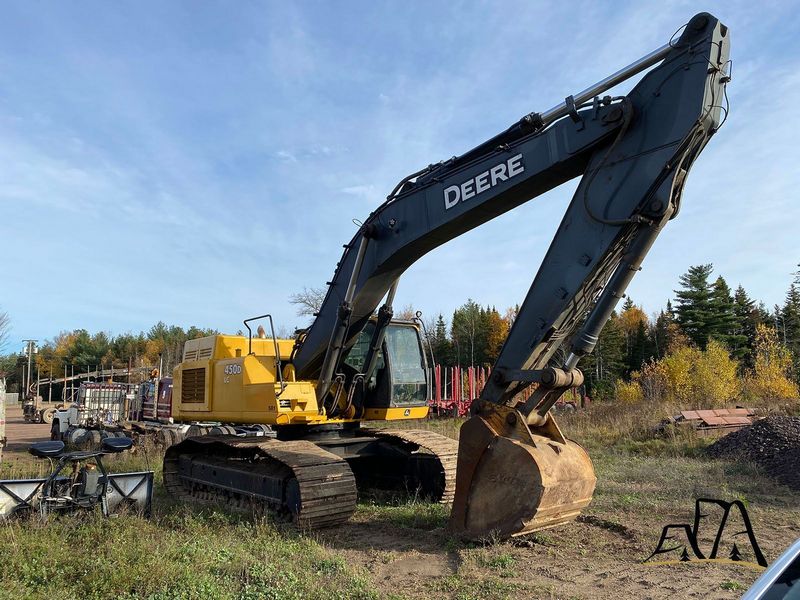

John Deere 450D LC
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 39.33 ft in (12000 mm) |
| Shipping Height Of Unit | 11.83 ft in (3600 mm) |
| Max Cutting Height | 33.67 ft in (10250 mm) |
| Max Loading Height | 23.08 ft in (7030 mm) |
| Max Reach Along Ground | 36.67 ft in (11170 mm) |
| Max Vertical Wall Digging Depth | 17.25 ft in (5270 mm) |
| Max Digging Depth | 23.92 ft in (7280 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 9' 6" (2.9 m) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.83 ft in (11220 mm) |
| Max Cutting Height | 35.67 ft in (10880 mm) |
| Shipping Height Of Unit | 12.25 ft in (3740 mm) |
| Max Loading Height | 24.08 ft in (7330 mm) |
| Max Reach Along Ground | 34.83 ft in (10610 mm) |
| Max Vertical Wall Digging Depth | 16.5 ft in (5020 mm) |
| Max Digging Depth | 20.43 ft in (6230 mm) |
| Boom/Stick Option (Hex) 2 | Mass Excavating Boom 20ft. 7in. 6.3m w/Arm 9ft.6in. 2.9m |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 39.08 ft in (11910 mm) |
| Max Cutting Height | 36.25 ft in (11060 mm) |
| Max Loading Height | 25.08 ft in (7650 mm) |
| Shipping Height Of Unit | 11.42 ft in (3480 mm) |
| Max Reach Along Ground | 38.83 ft in (11840 mm) |
| Max Vertical Wall Digging Depth | 21.58 ft in (6590 mm) |
| Max Digging Depth | 25.5 ft in (7770 mm) |
| Boom/Stick Option (Hex) 3 | Arm Length 11ft. 2in. 3.4m |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 39.08 ft in (11910 mm) |
| Shipping Height Of Unit | 11.5 ft in (3500 mm) |
| Max Cutting Height | 36.58 ft in (11160 mm) |
| Max Loading Height | 25.5 ft in (7770 mm) |
| Max Reach Along Ground | 40.25 ft in (12280 mm) |
| Max Digging Depth | 27.17 ft in (8270 mm) |
| Max Vertical Wall Dig Depth | 22.92 ft in (6980 mm) |
| Boom/Stick Option (Hex) 4 | Arm Length 12ft. 10in. 3.9m |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 39 ft in (11900 mm) |
| Shipping Height Of Unit | 14.92 ft in (4550 mm) |
| Max Cutting Height | 38.5 ft in (11730 mm) |
| Max Loading Height | 28.42 ft in (8670 mm) |
| Max Reach Along Ground | 43.08 ft in (13140 mm) |
| Max Digging Depth | 29.92 ft in (9110 mm) |
| Max Vertical Wall Dig Depth | 27.58 ft in (8420 mm) |
| Boom/Stick Option (Hex) 5 | Arm 16' 1" (4.9 m) |
Dimensions
| Ground Clearance | 2.33 ft in (723 mm) |
| Height To Top Of Cab | 10.92 ft in (3330 mm) |
| Width To Outside Of Tracks | 12.42 ft in (3790 mm) |
| Length Of Track On Ground | 14.67 ft in (4470 mm) |
| Tail Swing Radius | 12 ft in (3650 mm) |
| Removal Counterweight Clearance | 4.5 ft in (1360 mm) |
Undercarriage
| Track Gauge | 9.5 ft in (2890 mm) |
| Shoe Size | 36 in (900 mm) |
| Ground Pressure | 7.45 psi (51.4 kPa) |
| Max Travel Speed | 3.4 mph (5.5 km/h) |
| Drawbar Pull | 79590 lb (354.04 kN) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Shoes Per Side | 53 |
| Number Of Carrier Rollers Per Side | 3 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AH-6WG1XYSA-01 |
| Net Power | 348 hp (260 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1164 lb ft (1580 Nm) |
| Displacement | 957 cu in (15.7 L) |
| Aspiration | Turbocharged w/ cooler |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 106180 lb (48163 kg) |
| Fuel Capacity | 191.6 gal (725 L) |
| Cooling System Fluid Capacity | 50.7 gal (48 L) |
| Hydraulic System Fluid Capacity | 148 gal (560 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 14.8 gal (55.8 L) |
| Swing Drive Fluid Capacity | 1.3 gal (4.7 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 200.3 gal/min (758 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
| Swing Torque | 107004 lb ft (145189 Nm) |
Buckets
| Reference Bucket Capacity | 3.1 yd3 (2.4 m3) |
| Minimum Bucket Capacity | 1.9 yd3 (1.5 m3) |
| Maximum Bucket Capacity | 4.2 yd3 (3.2 m3) |
