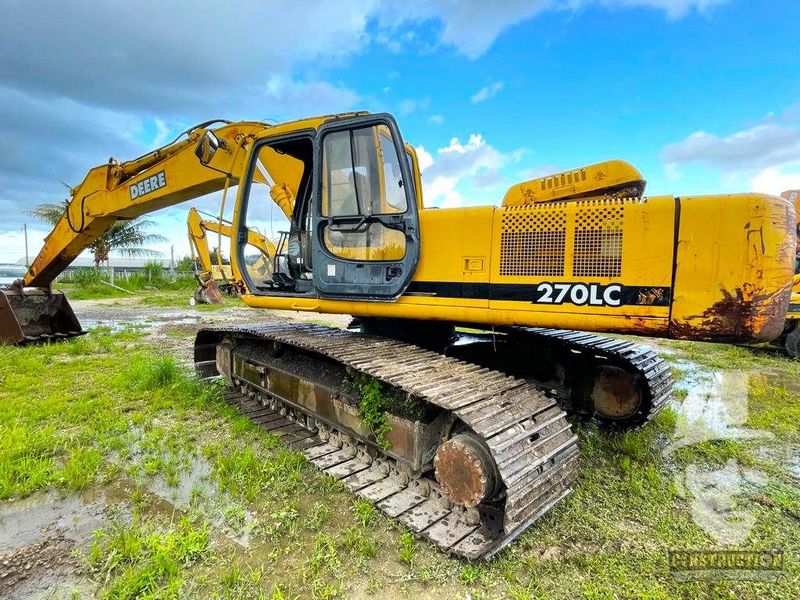

John Deere 270 LC
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 33.76 ft in (10290 mm) |
| Shipping Height Of Unit | 10.41 ft in (3170 mm) |
| Max Cutting Height | 32.75 ft in (9982.21 mm) |
| Max Loading Height | 23.17 ft in (7062.22 mm) |
| Max Reach Along Ground | 34.5 ft in (10515.6 mm) |
| Max Vertical Wall Digging Depth | 20.08 ft in (6120.39 mm) |
| Max Digging Depth | 23.75 ft in (7239 mm) |
| Boom/Stick Option (Hex) 1 | Arm Length 10ft. 1in. (3.1m) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 33.83 ft in (10310 mm) |
| Max Cutting Height | 33.58 ft in (10235.19 mm) |
| Shipping Height Of Unit | 11 ft in (3350 mm) |
| Max Loading Height | 24.08 ft in (7339.59 mm) |
| Max Reach Along Ground | 36.5 ft in (11125.2 mm) |
| Max Vertical Wall Digging Depth | 22.25 ft in (6781.8 mm) |
| Max Digging Depth | 25.83 ft in (7872.99 mm) |
| Boom/Stick Option (Hex) 2 | Arm Length 12ft 4in. (3.75m) |
Dimensions
| Ground Clearance | 1.67 ft in (509.02 mm) |
| Height To Top Of Cab | 9.95 ft in (3030 mm) |
| Width To Outside Of Tracks | 11.13 ft in (3390 mm) |
| Length Of Track On Ground | 13.16 ft in (4010 mm) |
| Tail Swing Radius | 9.65 ft in (2940 mm) |
| Removal Counterweight Clearance | 3.81 ft in (1160 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 32 in (800 mm) |
| Number Of Shoes Per Side | 50 |
| Drawbar Pull | 50510 lb (224.68 kN) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.2 mph (5.15 km/h) |
| Ground Pressure | 4.76 psi (32.82 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068H |
| Net Power | 180 hp (134.3 kw) |
| Power Measured @ | 2150 rpm |
| Max Torque | 399.8 lb ft (542 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Aspiration | Turbocharger |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 52410 lb (23772.8 kg) |
| Fuel Capacity | 82 gal (310.5 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Hydraulic System Fluid Capacity | 71 gal (268.8 L) |
| Engine Oil Capacity | 5.1 gal (19 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.5 gal (13 L) |
| Alternator Supplied Amperage | 45 amps |
| Hydraulic System Relief Valve Pressure | 1980 psi (13651.7 kPa) |
| Hydraulic Pump Flow Capacity | 55 gal/min (208.2 L/min) |
Swing Mechanism
| Swing Speed | 10.6 rpm |
| Swing Torque | 51622 lb ft (69990.1 Nm) |
Buckets
| Reference Bucket Capacity | 1.8 yd3 (1.4 m3) |
