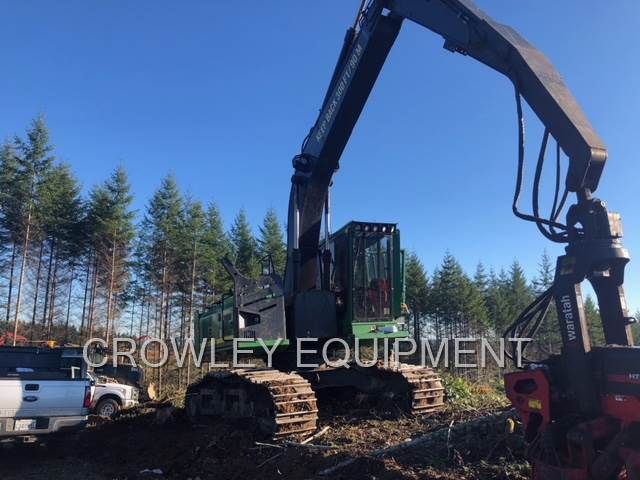

John Deere 2454D Processor
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 35.34 ft in (10770 mm) |
| Shipping Height Of Unit | 13.1 ft in (3990 mm) |
| Max Reach Along Ground | 28.42 ft in (8660 mm) |
| Max Digging Depth | 16.15 ft in (4920 mm) |
Dimensions
| Ground Clearance | 2.33 ft in (710 mm) |
| Height To Top Of Cab | 13.1 ft in (3990 mm) |
| Width To Outside Of Tracks | 2.3 ft in (700 mm) |
| Length Of Track On Ground | 35.34 ft in (10770 mm) |
| Tail Swing Radius | 10.67 ft in (3250 mm) |
| Removal Counterweight Clearance | 4.6 ft in (1400 mm) |
Undercarriage
| Track Gauge | 8.6 ft in (2620 mm) |
| Shoe Size | 27.56 in (700 mm) |
| Number Of Shoes Per Side | 45 |
| Ground Pressure | 8.37 psi (57.71 kPa) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Number Of Carrier Rollers Per Side | 2 |
| Drawbar Pull | 56075 lb (249.44 kN) |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | 6068H |
| Net Power | 194.5 hp (145 kw) |
| Aspiration | Turbocharged |
| Displacement | 415 cu in (6.8 L) |
Operational
| Operating Weight | 73832.9 lb (33490 kg) |
| Fuel Capacity | 277.4 gal (1050 L) |
| Cooling System Fluid Capacity | 7.9 gal (29.9 L) |
| Hydraulic System Fluid Capacity | 74 gal (280 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 6.5 gal (24.6 L) |
| Alternator Supplied Amperage | 80 amps |
| Hydraulic Pump Flow Capacity | 65.5 gal/min (248 L/min) |
Swing Mechanism
| Swing Speed | 12.6 rpm |
| Swing Torque | 56895.6 lb ft (77140 Nm) |
