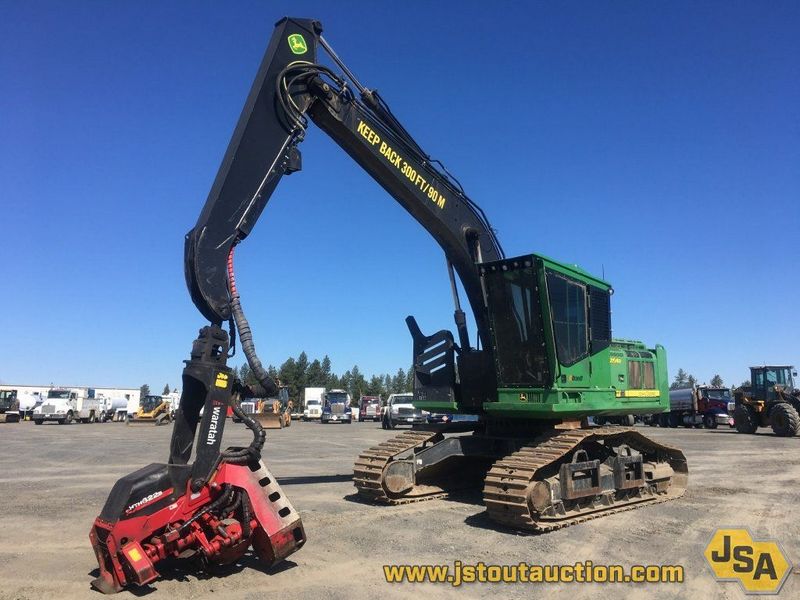

John Deere 2154D Butt & Top
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 44.92 ft in (13690 mm) |
| Shipping Height Of Unit | 15.62 ft in (4760 mm) |
| Max Cutting Height | 38.06 ft in (11600 mm) |
| Max Reach Along Ground | 31.86 ft in (9710 mm) |
| Max Digging Depth | 10.83 ft in (3300 mm) |
Dimensions
| Ground Clearance | 2.33 ft in (710 mm) |
| Height To Top Of Cab | 15.62 ft in (4760 mm) |
| Width To Outside Of Tracks | 2.3 ft in (700 mm) |
| Length Of Track On Ground | 44.92 ft in (13690 mm) |
| Tail Swing Radius | 10.18 ft in (3100 mm) |
| Removal Counterweight Clearance | 4.53 ft in (1380 mm) |
Undercarriage
| Shoe Size | 27.56 in (700 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Pressure | 7.84 psi (54 kPa) |
| Max Travel Speed | 3.17 mph (5.1 km/h) |
| Drawbar Pull | 49900 lb (221.97 kN) |
| Number Of Shoes Per Side | 48 |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | 6068H |
| Net Power | 159.6 hp (119 kw) |
| Aspiration | Turbocharged |
| Displacement | 415 cu in (6.8 L) |
Operational
| Operating Weight | 67754.7 lb (30733 kg) |
| Fuel Capacity | 277.2 gal (1049 L) |
| Cooling System Fluid Capacity | 6.9 gal (26 L) |
| Hydraulic System Fluid Capacity | 67.9 gal (257 L) |
| Engine Oil Capacity | 6.9 gal (26 L) |
| Operating Voltage | 24 V |
| Hydraulic Pump Flow Capacity | 62.3 gal/min (235.9 L/min) |
Swing Mechanism
| Swing Speed | 12.6 rpm |
| Swing Torque | 55026.6 lb ft (74606 Nm) |
