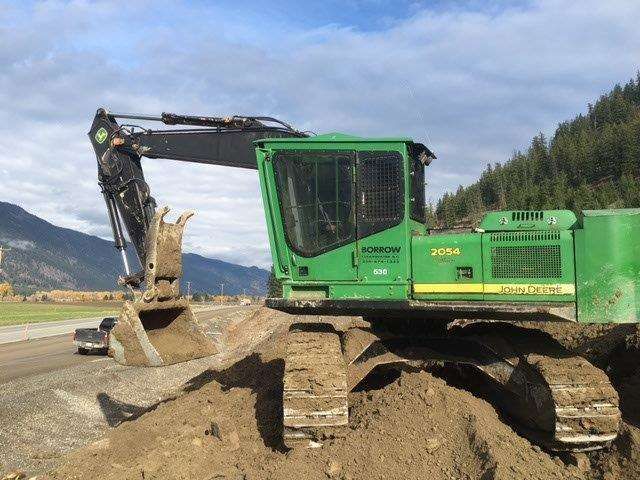

John Deere 2054 Road Builder
Browse All John Deere or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.8 ft in (9690 mm) |
| Max Cutting Height | 31.5 ft in (9600 mm) |
| Max Loading Height | 22.25 ft in (6780 mm) |
| Max Reach Along Ground | 32.52 ft in (9910 mm) |
| Max Vertical Wall Digging Depth | 19.85 ft in (6050 mm) |
| Max Digging Depth | 21.92 ft in (6680 mm) |
| Boom/Stick Option (Hex) 1 | standard arm 9'7" |
Dimensions
| Ground Clearance | 1.5 ft in (455 mm) |
| Height To Top Of Cab | 11.13 ft in (3390 mm) |
| Width To Outside Of Tracks | 10.54 ft in (3210 mm) |
| Tail Swing Radius | 9.85 ft in (3000 mm) |
| Removal Counterweight Clearance | 3.47 ft in (1056 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 27.96 in (710 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Drawbar Pull | 44420 lb (197.59 kN) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 6.5 psi (44.82 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068T |
| Net Power | 140.9 hp (105 kw) |
| Power Measured @ | 2150 rpm |
| Max Torque | 427.1 lb ft (579 Nm) |
| Displacement | 414 cu in (6.8 L) |
Operational
| Operating Weight | 54200.7 lb (24585 kg) |
| Fuel Capacity | 269 gal (1018 L) |
| Cooling System Fluid Capacity | 6.3 gal (23.5 L) |
| Hydraulic System Fluid Capacity | 34.4 gal (130 L) |
| Engine Oil Capacity | 5.1 gal (19 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.3 gal (4.7 L) |
| Alternator Supplied Amperage | 45 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 115.8 gal/min (438 L/min) |
Swing Mechanism
| Swing Speed | 13.3 rpm |
| Swing Torque | 43250.7 lb ft (58640 Nm) |
