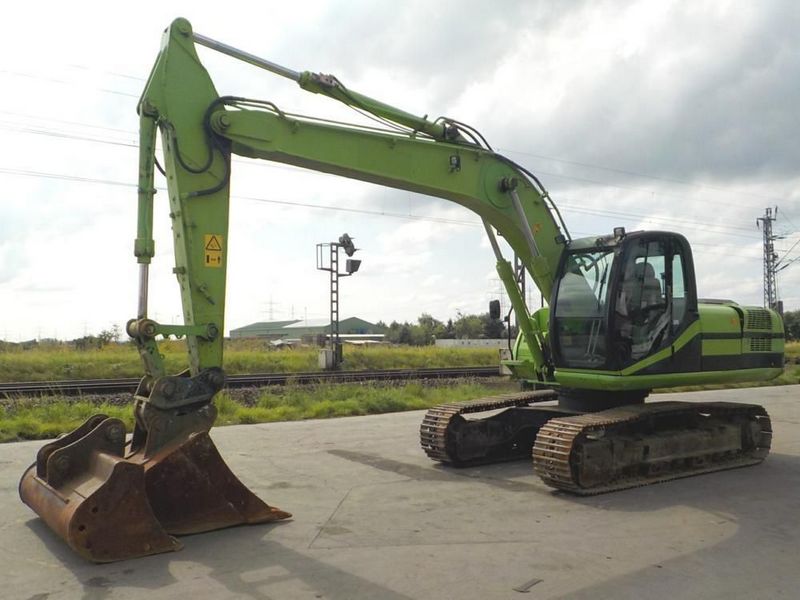

JCB JS200NC
Browse All JCB or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 29.37 ft in (8950 mm) |
| Max Loading Height | 20.71 ft in (6310 mm) |
| Max Reach Along Ground | 28.55 ft in (8700 mm) |
| Max Vertical Wall Digging Depth | 16.08 ft in (4900 mm) |
| Max Digging Depth | 18.15 ft in (5530 mm) |
| Boom/Stick Option (Hex) 1 | boom 5700mm w/ arm 1910mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 30.19 ft in (9200 mm) |
| Max Loading Height | 21.43 ft in (6530 mm) |
| Max Reach Along Ground | 30.06 ft in (9160 mm) |
| Max Vertical Wall Digging Depth | 17.95 ft in (5470 mm) |
| Max Digging Depth | 19.76 ft in (6020 mm) |
| Boom/Stick Option (Hex) 2 | boom 5700mm w/ arm 2400mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 30.84 ft in (9400 mm) |
| Max Loading Height | 22.15 ft in (6750 mm) |
| Max Reach Along Ground | 31.83 ft in (9700 mm) |
| Max Vertical Wall Digging Depth | 19.92 ft in (6070 mm) |
| Max Digging Depth | 21.66 ft in (6600 mm) |
| Boom/Stick Option (Hex) 3 | boom 5700mm w/ arm 3000mm |
Dimensions
| Ground Clearance | 1.6 ft in (486 mm) |
| Height To Top Of Cab | 9.67 ft in (2946 mm) |
| Width To Outside Of Tracks | 8.17 ft in (2490 mm) |
| Length Of Track On Ground | 11.06 ft in (3370 mm) |
| Tail Swing Radius | 9.27 ft in (2825 mm) |
| Removal Counterweight Clearance | 3.5 ft in (1066 mm) |
Undercarriage
| Track Gauge | 6.53 ft in (1990 mm) |
| Shoe Size | 19.69 in (500 mm) |
| Max Travel Speed | 3.48 mph (5.6 km/h) |
| Number Of Shoes Per Side | 46 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 6.8 psi (46.89 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | BB-6BGIT European Tier II |
| Net Power | 136.8 hp (102 kw) |
| Power Measured @ | 1950 rpm |
| Displacement | 396.3 cu in (6.5 L) |
Operational
| Operating Weight | 46716 lb (21190 kg) |
| Fuel Capacity | 90.7 gal (343 L) |
| Cooling System Fluid Capacity | 6.8 gal (25.5 L) |
| Hydraulic System Fluid Capacity | 52.9 gal (200 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 5.7 gal (21.5 L) |
| Swing Drive Fluid Capacity | 1.4 gal (5 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4975 psi (34301.4 kPa) |
| Hydraulic Pump Flow Capacity | 113.1 gal/min (428 L/min) |
Swing Mechanism
| Swing Speed | 12.9 rpm |
Buckets
| Reference Bucket Capacity | 1.5 yd3 (1.2 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.6 yd3 (1.2 m3) |
