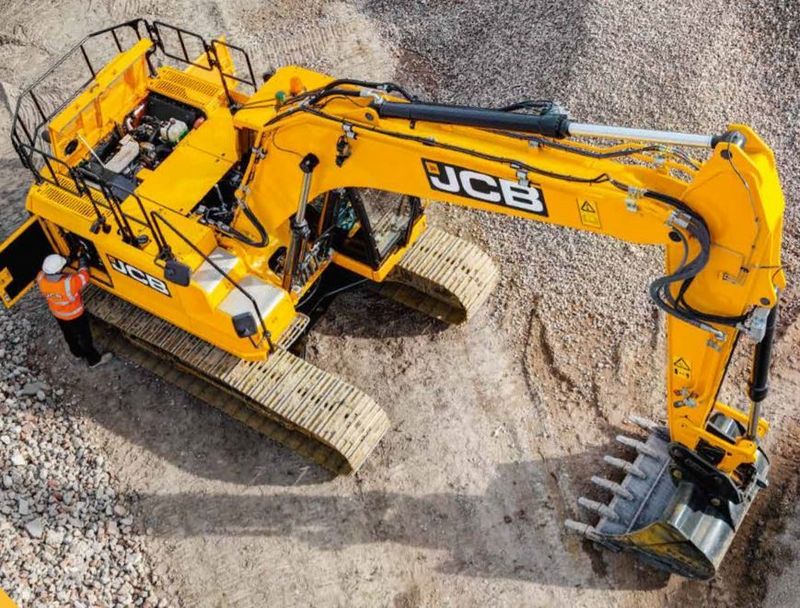

JCB 210X LC
Browse All JCB or Hydraulic Excavator Models
Contents:
Dimensions
| Ground Clearance | 1.6 ft in (485 mm) |
| Height To Top Of Cab | 9.91 ft in (3020 mm) |
| Track Gauge | 7.85 ft in (2390 mm) |
| Counterweight Clearance | 3.54 ft in (1077 mm) |
| Tailswing Radius | 9.34 ft in (2846 mm) |
| Track Height | 34.85 in (885 mm) |
| Track Length On Ground | 12.01 ft in (3660 mm) |
| Undercarriage Overall Length | 14.64 ft in (4460 mm) |
| Width Over Tracks | 10.8 ft in (3290 mm) |
| Overall Height | 10.41 ft in (3170 mm) |
| Overall Width Of Superstructure | 8.86 ft in (2698 mm) |
| Tail Length | 110.75 in (2813 mm) |
Engine
| Air Filter Type | Dry element with in cab warning indicator |
| Starting System | 24 volt |
| Battery | 2 x 12 volt. |
| Engine Model | JCB EcoMAX Tier 4 Final / IV |
| Engine Type | 4 stroke, 4 cylinder in-line, direct injection, turbocharged diesel |
| Net Power | 173 hp (129 kw) |
| Max Torque | 509 lb ft (690 Nm) |
| Displacement | 293 cu in (4.8 L) |
| Torque Measured @ | 1500 rpm |
| Bore | 4.2 in (106 mm) |
| Stroke | 5.4 in (135 mm) |
| Alternator | 100 amps |
