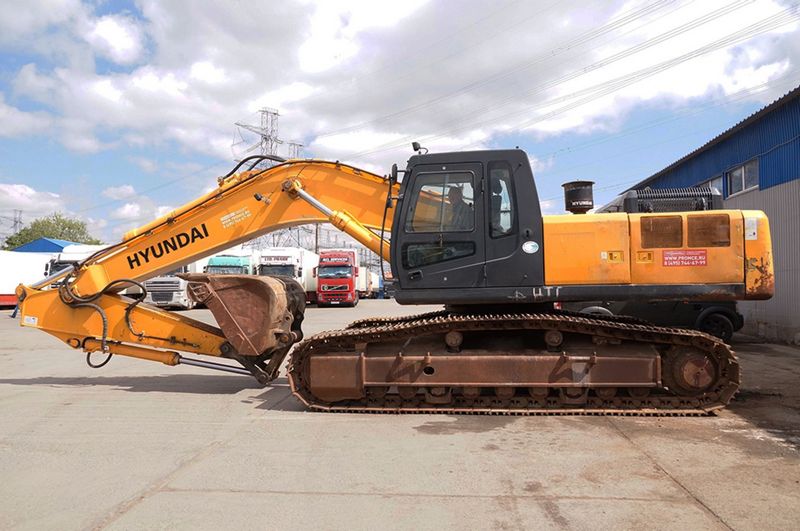

Hyundai R360LC-7
Browse All Hyundai or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.88 ft in (11240 mm) |
| Shipping Height Of Unit | 12.14 ft in (3700 mm) |
| Max Cutting Height | 34.36 ft in (10470 mm) |
| Max Loading Height | 23.86 ft in (7270 mm) |
| Max Reach Along Ground | 34.42 ft in (10490 mm) |
| Max Vertical Wall Digging Depth | 19.49 ft in (5940 mm) |
| Max Digging Depth | 22.31 ft in (6800 mm) |
| Boom/Stick Option (Hex) 1 | Boom 21'4" (6500mm)/Stick 8'2" (2500mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 36.49 ft in (11120 mm) |
| Max Cutting Height | 34.22 ft in (10430 mm) |
| Shipping Height Of Unit | 11.29 ft in (3440 mm) |
| Max Loading Height | 23.92 ft in (7290 mm) |
| Max Reach Along Ground | 36.09 ft in (11000 mm) |
| Max Vertical Wall Digging Depth | 20.81 ft in (6340 mm) |
| Max Digging Depth | 24.61 ft in (7500 mm) |
| Boom/Stick Option (Hex) 2 | Boom 21'4" (6500mm)/Stick 10'6" (3200mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 36.32 ft in (11070 mm) |
| Max Cutting Height | 34.95 ft in (10650 mm) |
| Max Loading Height | 24.64 ft in (7510 mm) |
| Shipping Height Of Unit | 12.7 ft in (3870 mm) |
| Max Reach Along Ground | 38.29 ft in (11670 mm) |
| Max Vertical Wall Digging Depth | 23.1 ft in (7040 mm) |
| Max Digging Depth | 26.91 ft in (8200 mm) |
| Boom/Stick Option (Hex) 3 | Boom 21'4" (6500mm)/Stick 12'10" (3900mm) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 36.26 ft in (11050 mm) |
| Shipping Height Of Unit | 14.01 ft in (4270 mm) |
| Max Cutting Height | 36.78 ft in (11210 mm) |
| Max Loading Height | 26.35 ft in (8030 mm) |
| Max Reach Along Ground | 39.97 ft in (12180 mm) |
| Max Digging Depth | 28.22 ft in (8600 mm) |
| Max Vertical Wall Dig Depth | 24.78 ft in (7550 mm) |
| Boom/Stick Option (Hex) 4 | Boom 21'4" (6500mm)/Stick 14'1" (4300mm) |
Boom/Stick Option (Hex) 5
| Shipping Length Of Unit | 35.7 ft in (10880 mm) |
| Shipping Height Of Unit | 12.57 ft in (3830 mm) |
| Max Cutting Height | 33.47 ft in (10200 mm) |
| Max Loading Height | 23.04 ft in (7020 mm) |
| Max Reach Along Ground | 33.14 ft in (10100 mm) |
| Max Digging Depth | 21.13 ft in (6440 mm) |
| Max Vertical Wall Dig Depth | 18.05 ft in (5500 mm) |
| Boom/Stick Option (Hex) 5 | Boom 20'2" (6150mm)/Stick 8'2" (2500mm) |
Dimensions
| Ground Clearance | 1.81 ft in (550 mm) |
| Height To Top Of Cab | 10.42 ft in (3175 mm) |
| Width To Outside Of Tracks | 10.96 ft in (3340 mm) |
| Length Of Track On Ground | 14.24 ft in (4340 mm) |
| Tail Swing Radius | 11.21 ft in (3415 mm) |
| Removal Counterweight Clearance | 4.24 ft in (1290 mm) |
Undercarriage
| Track Gauge | 8.99 ft in (2740 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 9.1 psi (62.75 kPa) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
| Drawbar Pull | 68350 lb (304.04 kN) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Shoes Per Side | 51 |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSC8.3C |
| Gross Power | 280 hp (208.8 kw) |
| Net Power | 261 hp (194.7 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 870 lb ft (1179.6 Nm) |
| Displacement | 506 cu in (8.3 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 79586.9 lb (36100 kg) |
| Fuel Capacity | 137.4 gal (520 L) |
| Cooling System Fluid Capacity | 11.9 gal (45 L) |
| Hydraulic System Fluid Capacity | 100.4 gal (380 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 7.1 gal (26.5 L) |
| Swing Drive Fluid Capacity | 2.2 gal (8 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4690 psi (32336.4 kPa) |
| Hydraulic Pump Flow Capacity | 153.3 gal/min (580 L/min) |
Swing Mechanism
| Swing Speed | 9.1 rpm |
Buckets
| Reference Bucket Capacity | 2.2 yd3 (1.7 m3) |
| Minimum Bucket Capacity | 1.6 yd3 (1.2 m3) |
| Maximum Bucket Capacity | 3.1 yd3 (2.4 m3) |
