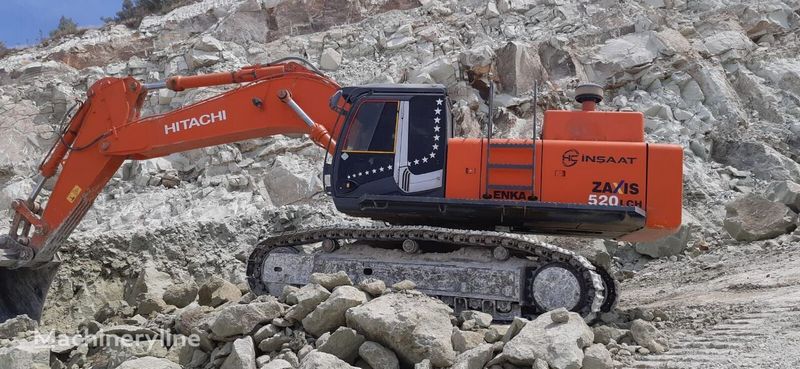

Hitachi ZX520LCR-3
Browse All Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 35.21 ft in (10730 mm) |
| Max Loading Height | 24.25 ft in (7390 mm) |
| Max Reach Along Ground | 33.44 ft in (10190 mm) |
| Max Vertical Wall Digging Depth | 13.72 ft in (4180 mm) |
| Max Digging Depth | 18.77 ft in (5720 mm) |
| Boom/Stick Option (Hex) 1 | Boom 6300mm/Stick 2500mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 35.67 ft in (10870 mm) |
| Max Loading Height | 24.68 ft in (7520 mm) |
| Max Reach Along Ground | 34.42 ft in (10490 mm) |
| Max Vertical Wall Digging Depth | 15 ft in (4570 mm) |
| Max Digging Depth | 19.85 ft in (6050 mm) |
| Boom/Stick Option (Hex) 2 | Boom 6300mm/Stick 2900mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 33.6 ft in (10240 mm) |
| Max Loading Height | 23.53 ft in (7170 mm) |
| Max Reach Along Ground | 36.36 ft in (11080 mm) |
| Max Vertical Wall Digging Depth | 13.78 ft in (4200 mm) |
| Max Digging Depth | 23.4 ft in (7130 mm) |
| Boom/Stick Option (Hex) 3 | Boom 7000mm/Stick 2900mm |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 39.01 ft in (11890 mm) |
| Shipping Height Of Unit | 11.49 ft in (3500 mm) |
| Max Cutting Height | 36.52 ft in (11130 mm) |
| Max Loading Height | 25.37 ft in (7730 mm) |
| Max Reach Along Ground | 38.78 ft in (11820 mm) |
| Max Digging Depth | 25.23 ft in (7690 mm) |
| Boom/Stick Option (Hex) 4 | Boom 7000mm/Stick 3400mm |
| Max Vertical Wall Dig Depth | 23.07 ft in (7030 mm) |
Dimensions
| Ground Clearance | 2.66 ft in (810 mm) |
| Height To Top Of Cab | 11.55 ft in (3520 mm) |
| Width To Outside Of Tracks | 11.55 ft in (3520 mm) |
| Length Of Track On Ground | 13.95 ft in (4250 mm) |
| Tail Swing Radius | 11.96 ft in (3645 mm) |
| Removal Counterweight Clearance | 4.71 ft in (1435 mm) |
Undercarriage
| Track Gauge | 9.59 ft in (2920 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 13.49 psi (93 kPa) |
| Number Of Carrier Rollers Per Side | 3 |
| Number Of Shoes Per Side | 49 |
| Number Of Track Rollers Per Side | 8 |
| Max Travel Speed | 2.49 mph (4 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AH-6WG1XYSA-01 |
| Net Power | 349 hp (260 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1165.4 lb ft (1580 Nm) |
| Aspiration | Turbocharged |
| Displacement | 957 cu in (15.7 L) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 115742.7 lb (52500 kg) |
| Fuel Capacity | 191.6 gal (725 L) |
| Cooling System Fluid Capacity | 14.6 gal (55 L) |
| Hydraulic System Fluid Capacity | 148 gal (560 L) |
| Engine Oil Capacity | 15.1 gal (57 L) |
| Swing Drive Fluid Capacity | 1.8 gal (6.5 L) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 190.3 gal/min (720 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 2.5 yd3 (1.9 m3) |
